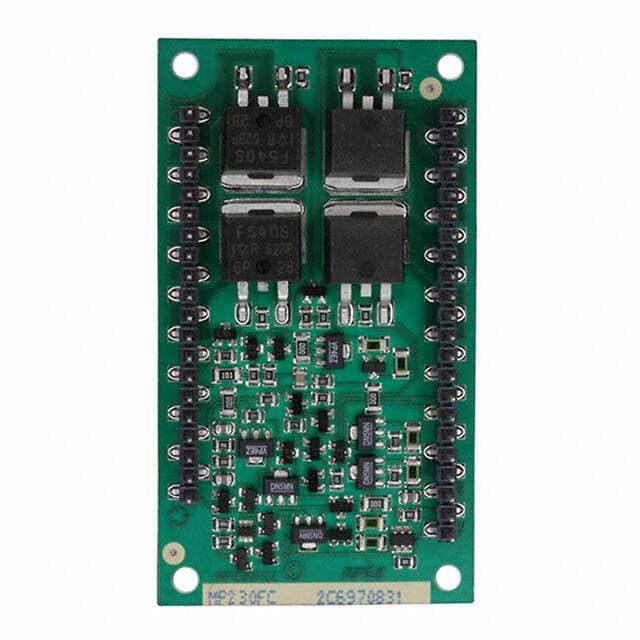

APEX MP230FC

Manufacturer No:

MP230FC

Manufacturer:

APEX

Package:

42-DIP Module

Description:

30A per Channel 100pA 92 dB Instrumentational OP Amps 30V~100V ±15V~50V MP*FC 42 Pins 42-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MP230FC information

APEX MP230FC technical specifications, attributes, parameters and parts with similar specifications to APEX MP230FC.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
42-DIP Module

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
Apex Precision Power®

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
42

ECCN Code
EAR99

Terminal Finish
TIN

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
45V

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MP*FC

Pin Count
42

JESD-30 Code
R-XDMA-P42

Qualification Status
Not Qualified

Number of Circuits
1

Slew Rate
15V/μs

Amplifier Type
Power

Common Mode Rejection Ratio
92 dB

Current - Input Bias
100pA

Voltage - Supply, Single/Dual (±)
30V~100V ±15V~50V

Output Current per Channel
30A

Input Offset Voltage (Vos)
1mV

Gain Bandwidth Product
2MHz

Neg Supply Voltage-Nom (Vsup)
-45V

Unity Gain BW-Nom
2000 kHz

Supply Voltage Limit-Max
50V

Neg Supply Voltage-Max (Vsup)
-50V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX MP230FC.

MP230FC Overview

There is a 42-DIP Module case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Power-types. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 42 mark. The total number of pins on linear amplifier is 42. The linear amplifier should be run at 45V at all times, so please keep that in mind when using it. As far as the input offset voltage is concerned, linear amplifier rates at 1mV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of -40°C~85°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 27mA . A linear amplifier like this has 1 circuits on it. The Apex Precision Power® represents the op amp's series number.
