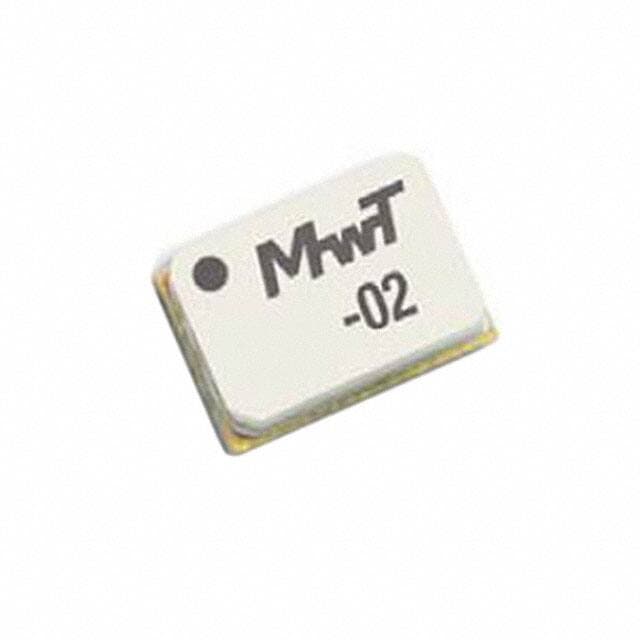

Microwave Technology Inc. MGA-333840-02

Manufacturer No:

MGA-333840-02

Manufacturer:

Microwave Technology Inc.

Package:

10-SMD, No Lead

Description:

12dB 802.16d/e WiMax NARROW BAND HIGH POWER Cut Tape (CT) 3.3GHz~3.8GHz 28V P1dB:33dBm Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MGA-333840-02 information

Microwave Technology Inc. MGA-333840-02 technical specifications, attributes, parameters and parts with similar specifications to Microwave Technology Inc. MGA-333840-02.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
10-SMD, No Lead

Packaging
Cut Tape (CT)

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Voltage - Supply
28V

Construction
COMPONENT

Frequency
3.3GHz~3.8GHz

Test Frequency
3.3GHz~3.8GHz

Current - Supply
400mA

Gain
12dB

RF/Microwave Device Type
NARROW BAND HIGH POWER

RF Type
802.16d/e WiMax

Input Power-Max (CW)
33dBm

Characteristic Impedance
50Ohm

P1dB
33dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microwave Technology Inc. MGA-333840-02.

MGA-333840-02 Overview

RF Amplifier with cost-effective NARROW BAND HIGH POWER RF/Microwave Device Type.An RF amplifier with the 802.16d/e WiMax RF type.High reliability can be achieved by using the advanced RF Amp' packaging Cut Tape (CT).Due to its 10-SMD, No Lead packaging, it is convenient to ship overseas.Surface Mount is the recommended mount Amplifiers RF direction.Amplifiers RFs that can supply 28V volts are available.It operates on a supply RF Amplifiers' current of 400mA for its operation.

MGA-333840-02 Features

NARROW BAND HIGH POWER RF/Microwave Amplifier
RF Type 802.16d/e WiMax
28V voltage
400mA current

MGA-333840-02 Applications

There are a lot of Microwave Technology Inc.
MGA-333840-02 RF Amplifiers applications.

Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
