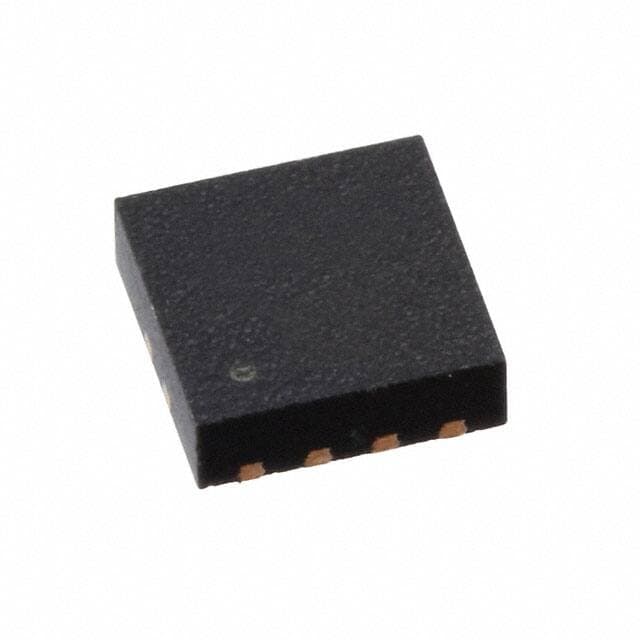

ST LDK715PU33R

Manufacturer No:

LDK715PU33R

Manufacturer:

Package:

8-VDFN Exposed Pad

Description:

Fixed 0.65mm LDK715 PMIC 8-VDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LDK715PU33R information

ST LDK715PU33R technical specifications, attributes, parameters and parts with similar specifications to ST LDK715PU33R.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
8-VDFN Exposed Pad

Surface Mount
YES

Number of Pins
8

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LDK715

Current - Supply (Max)
8.5?A

Voltage - Input (Max)
24V

Output Voltage
3.3V

Output Type
Fixed

Output Configuration
Positive

Output Voltage 1
3.3V

Number of Regulators
1

Min Input Voltage
4.3V

Protection Features
Over Current, Over Temperature

Current - Quiescent (Iq)
7?A

Voltage Dropout (Max)
1V @ 85mA

PSRR
57dB ~ 38dB (100kHz ~ 1kHz)

Dropout Voltage
500mV

Nominal Output Voltage
3.3V

Length
3mm

Width
3mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST LDK715PU33R.

Datasheets:

stmicroelectronics-ldk715pu42r-datasheets-4038.pdf

LDK715PU33R Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 8-VDFN Exposed Pad case. On the regulater IC chip, there are a total of 8 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C TJ degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 85mA. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 8 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LDK715.

LDK715PU33R Features

500mV dropout voltage

LDK715PU33R Applications

There are a lot of STMicroelectronics
LDK715PU33R Linear Voltage Regulators applications.

Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
Quick charge protocols
