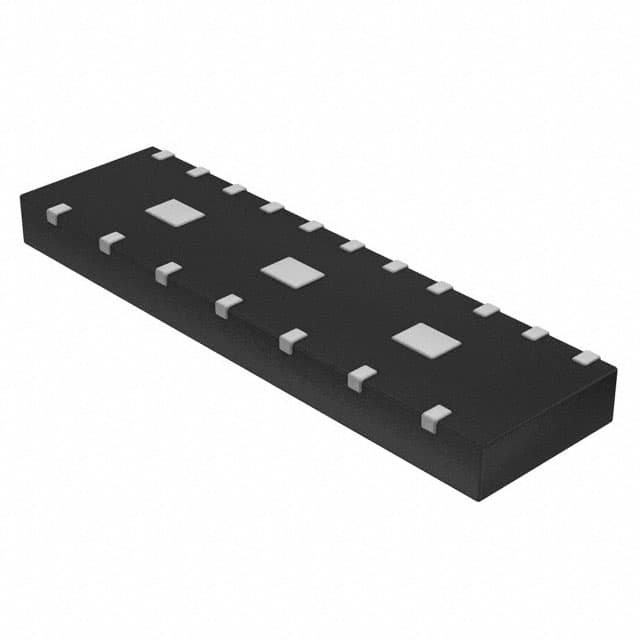

ONSEMI MG2040MUTAG

Manufacturer No:

MG2040MUTAG

Manufacturer:

ONSEMI

Package:

18-UFDFN Exposed Pad

Description:

ESD Protection Diode, Low Capacitance, High Speed Video Interface

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MG2040MUTAG information

ONSEMI MG2040MUTAG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MG2040MUTAG.

Type
Parameter

VRWM Max (V)
5

Package Type
UDFN-18

MSL Temp (°C)
260

Container Qty.
3000

Number of Lines
14

Case Outline
517CP

MSL Type
1

IR Max (µA)
1

Interface
Display Port

C Max (pF)
0.42

V(BR) Min (V)
5.5

Container Type
REEL

Direction
Unidirectional

PPK Max (W)
10.7

Download datasheets and manufacturer documentation for ONSEMI MG2040MUTAG.

Datasheet:

6db2ca21f54cb1888f4a800766dccacc.pdf

Package Drawing:

1a78b15ca3012df65b1bdf152f4dedbd.pdf

The MG2040 is designed specifically to protect HDMI and Display Port with full functionality ESD protection and back drive current protection for VCC line. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed TMDS lines.

Application

HDMI
Display Port

Feature

Full Function HDMI/Display Port Solution
Single Connect, Flow through Routing for TMDS Lines
Low Capacitance (0.35pF Typical, I/O to GND)
Protection for the following IEC Standards: IEC 61000-4-2 Level 4(±8 kV Contact)
UL Flammability Rating of 94 V-0
Pb-Free Device
