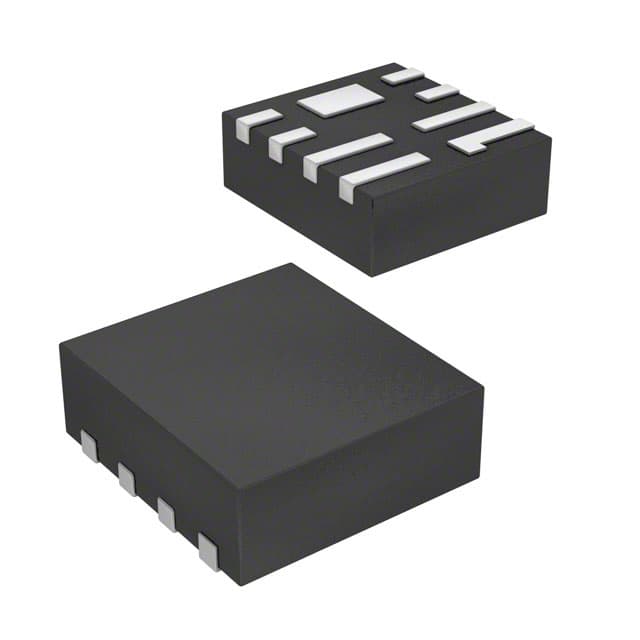

ONSEMI EMI2121MTTAG

Manufacturer No:

EMI2121MTTAG

Manufacturer:

ONSEMI

Package:

8-WFDFN Exposed Pad

Description:

EMI Common Mode Filter with ESD Protection

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMI2121MTTAG information

ONSEMI EMI2121MTTAG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI EMI2121MTTAG.

Type
Parameter

Case Outline
511BN

Container Qty.
3000

Number of Lines
3

R Typ (Ω)
8

VRWM Max (V)
5

Container Type
REEL

Filter Type
Common Mode

V(BR) Typ (V)
7.25

Package Type
WDFN-8

MSL Temp (°C)
260

Interface
USB 2.0

C Typ (pF)
0.8

IR Max (µA)
1

MSL Type
1

Download datasheets and manufacturer documentation for ONSEMI EMI2121MTTAG.

Datasheet:

cc35a07746dfb1b7e66becbbb4d5ab30.pdf

Package Drawing:

be41c543fd81fc4b324c39bd6b7d4d2e.pdf

The EMI2121 is an integrated common mode filter providing both ESD protection and EMI filtering for high speed serial digital interfaces such as USB2.0.The EMI2121 provides EMI filtering for one differential data line pair and ESD protection for one data pair plus a supply input such as USB2.0 Vbus or USB ID pin. It is supplied in a small RoHS compliant WDFN8 package.

Application

USB2.0 and other High Speed Differential Data Lines in Mobile Phones and Digital Still Cameras
MIPI DPHY

Feature

Highly Integrated Common Mode Filter (CMF) with ESD Protection
provides protection and EMI Reduction for systems using high speed
Serial Data Lines with cost and space savings over Discrete Solutions
Large Differential Mode Bandwidth with Cutoff Frequency > 2 GHz
High Common Mode Stop Band Attenuation: >25 dB at 700 MHz,
>30 dB at 800 MHz Typical
Provides ESD Protection to IEC61000-4-2 Level 4, 12 kV Contact Discharge
Low Channel Input Capacitance Provides Superior Impedance Matching
