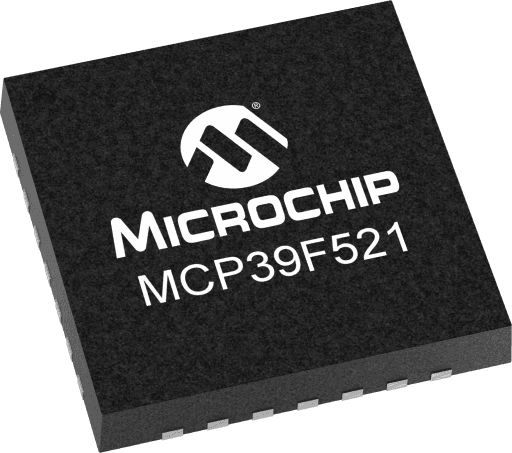

Microchip MCP39F521-E/MQ

Manufacturer No:

MCP39F521-E/MQ

Manufacturer:

Microchip

Package:

28-VFQFN Exposed Pad

Description:

I2C Power Monitoring IC with Calculations and Energy Accumulation designed for measurement of input power for AC/DC power supplies, power meters, and

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP39F521-E/MQ information

Microchip MCP39F521-E/MQ technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP39F521-E/MQ.

Type
Parameter

Resolution
24

Sample Rate kSPS Max
0.0125

Input Channels Differential
2

SNR typ
95

SFDRTyp
111

ENOB
15.4

INL Typ LSB
1

Download datasheets and manufacturer documentation for Microchip MCP39F521-E/MQ.

Data Sheets:

e2777e742e2d404eaadada30174df513.pdf

User Guide:

54b1bc67b053dc0a71e7e426e7e49cef.pdf

The MCP39F521 is a highly integrated, single-phase power-monitoring IC designed for real-time measurement of input power for AC/DC power supplies, providing power and energy values. It includes dual-channel delta sigma ADCs, a 16-bit calculation engine, EEPROM and a flexible 2-wire interface. An integrated low-drift voltage reference in addition to the 94.5 dB of SINAD performance on each measurement channel allows for better than 0.1% accurate designs across a 4000:1 dynamic range.

Power Monitoring Accuracy capable of 0.1% error across 4000:1 dynamic range
Active, Reactive, Apparent Power
Active and Reactive Energy Accumulation
True RMS Current, RMS Voltage
Line Frequency, Power Factor
Dedicated Zero Crossing Detection (ZCD) Pin
Dedicated PWM Output Pin
Automatic Event Pin Control through Fast Voltage Surge Detection
Fast Calibration Routines
I2C Interface
512 bytes User-accessible EEPROM through page read/write commands
Non-volatile On-chip Memory, no external memory required
Low-Drift Internal Voltage Reference: 10 ppm/°C typical
28-lead 5x5 QFN package
Extended Temperature Range -40°C to +125°C
AEC-Q100 Grade 1
