Microchip ATSAMD20E15B-MUT
Microchip ATSAMD20E15B-MUT

Microchip ATSAMD20E15B-MUT

Manufacturer No:

ATSAMD20E15B-MUT

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

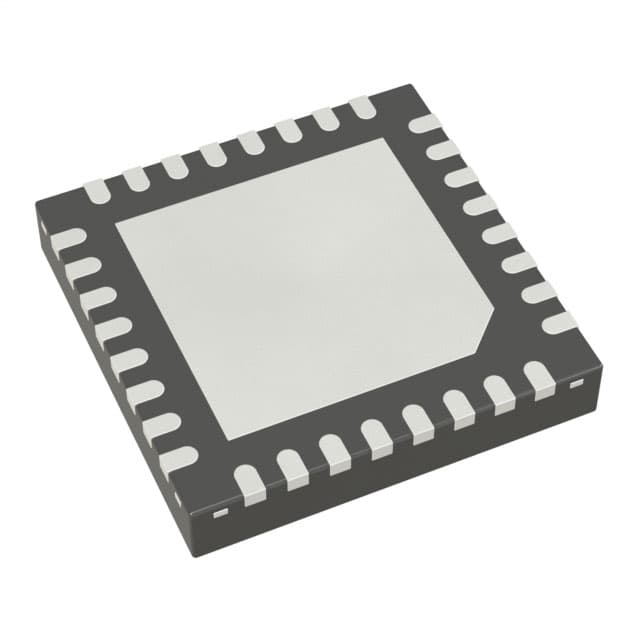

SAMD20, 32KB Flash, 4KB RAM, low cost, ARM Cortex M0+, low power, 32-pin

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSAMD20E15B-MUT information

Microchip ATSAMD20E15B-MUT technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSAMD20E15B-MUT.

  • Type
  • Parameter
  • Part Family
  • SAMD20
  • CPU Type
  • Cortex-M0+
  • MaxSpeed (MHz)
  • 48
  • Program Memory Size (KB)
  • 32
  • SRAM (KB)
  • 4
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 125
  • Operation Voltage Min.(V)
  • 1.62
  • Operation Voltage Max.(V)
  • 3.63
  • SPI
  • 4
  • I2C
  • 4
  • UART
  • 4
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 32khz, 32Khz ULP, 8Mhz
  • Pin Count
  • 32

Download datasheets and manufacturer documentation for Microchip ATSAMD20E15B-MUT.

Errata:

Legacy Collaterals:

User Guide:

Application Notes:

Tech Brief:

Brochures:

Data Sheets:

A low-power, high-performance Microchip's ARM® Cortex®-M0+ based flash microcontroller, the ATSAMD20E15 is ideal for a wide range of home automation, consumer, metering, and industrial applications. It features:

  • 32KB of Flash and 4KB of SRAM
  • 48MHz operating frequency
  • Four serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, six 16-bit timer/counters, 32-bit Real Time clock and calendar, 10 PWM channels, one 10-channel 12-bit ADC, one 10-bit DAC
  • Support for up to 60 touch channels
  • 1.62V to 3.63V power supply
  • Easy pin migration to SAMD20G and SAMD20J devices


Supported by MPLAB X IDE and MPLAB Harmony.



  • ARM Cortex-M0+ CPU running at up to 48MHz
  • Single-cycle hardware multiplier
  • 32KB in-system self-programmable Flash
  • 4KB SRAM memory
  • Power-on reset (POR) and brown-out detection (BOD)
  • Internal and external clock options with 48MHdigital frequency locked loop (DFLL48M) and 48MHto 96MHz
  • fractional digital phase locked loop (FDPLL96M)
  • External interrupt controller (EIC)
  • 16 external interrupts
  • One non-maskable interrupt
  • Two-pin serial wire debug (SWD) programming, test and debugging interface
  • Idle and standby sleep modes
  • SleepWalking peripherals
  • 8-channel event system
  • One 16-bit TC with compare/capture channels
  • One 8-bit TC with compare/capture channels
  • One 32-bit TC with compare/capture channels, by using two TCs
  • 32-bit real time counter (RTC) with clock/calendar function
  • Watchdog timer (WDT)
  • CRC-32 generator
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C up to 40kHz
  • SPI
  • Differential and single-ended input
  • 1/2x to 16x programmable gain stage
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
  • 10-bit, 350ksps digital-to-analog converter (DAC)
  • Two analog comparators (AC) with window compare function
  • 256-channel capacitive touch and proximity sensing
  • 26 GPIO pins
  • 32-pin TQFP, QFN
  • 1.62V to 3.63V
  • Down to 70µA/MHz in active mode
  • Down to 8µA running the peripheral Touch Controller
  • –40 to +105°C
