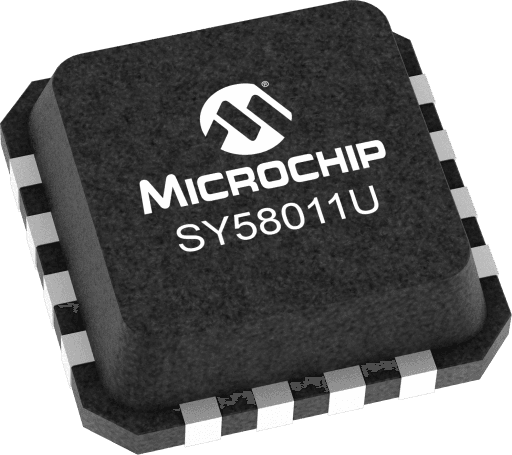

Microchip SY58011UMG

Manufacturer No:

SY58011UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

Ultra High Speed 1:2 CML Fanout Buffer/Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58011UMG information

Microchip SY58011UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58011UMG.

Type
Parameter

Description
1:2

Input
ANY

Output
CML

Supply Voltage
2.5/3.3

Max Freq (GHz)
7

Icc (mA)
75

Max Within Device Skew (ps)
15

OE
False

Input Mux
False

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:2

Max Prop Delay (ps)
250

Download datasheets and manufacturer documentation for Microchip SY58011UMG.

User Guide:

829d0927039acbb0cfdaf7498c2031b0.pdf

Data Sheets:

783a7962ccdfb6124638dd814e3b6731.pdf

The SY58011U is a 2.5V/3.3V precision, high-speed, fully differential 1:2 CML fanout buffer. Optimized to provide two identical output copies with less than 15ps of skew and less than 10ps(pk-pk) total jitter, the SY58011U can process clock signals as fast as 7GHz or data patterns up to 10.7Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS, or CML differential signals, (AC-coupled or DC-coupled) as small as 100mV without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an on-board output reference voltage (VREF-AC) is provided to bias the VT pin. The outputs are compatible with 400mV typical swing into 50Ω loads, with extremely fast rise/fall times guaranteed to be less than 60ps.The SY58011U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require LVPECL outputs, consider the SY58012U or SY58013U 1:2 fanout buffer with 800mV and 400mV output swing, respectively. The SY58011U is part of Micrel's highspeed, Precision Edge® product line.

Precision 1:2, 400mV CML fanout buffer
>7GHz fMAX clock
<60ps tr/tf times
<250ps tpd
<15ps max. skew
<10psPP total jitter (clock)
<10psPP deterministic jitter (data)
Accepts an input signal as low as 100mV
Unique input termination and VT pin accepts DCcoupled and AC-coupled differential inputs: LVPECL, LVDS, and CML
50O source terminated CML outputs
Power supply 2.5V ±5% and 3.3V ±10%
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) MLF® package
