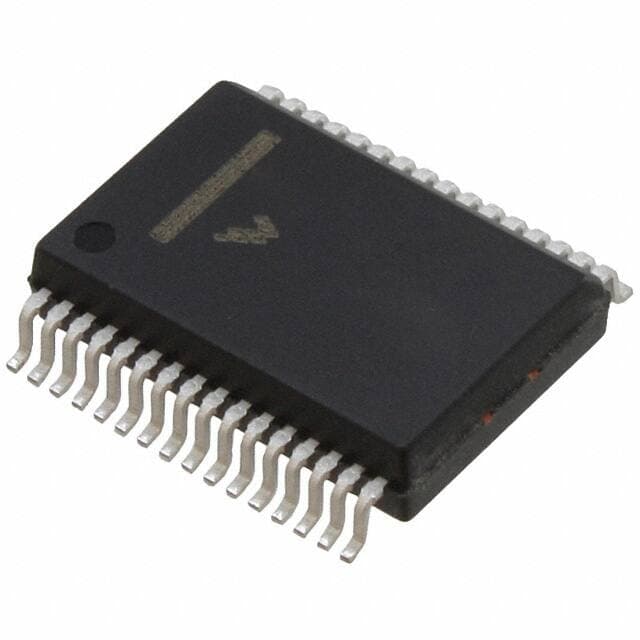

NXP MC33880PEWR2
NXP MC33880PEWR2

NXP MC33880PEWR2

Manufacturer No:

MC33880PEWR2

Manufacturer:

NXP

Package:

32-BSSOP (0.295, 7.50mm Width)

Description:

N-Channel 0.65mm PMIC MC33880 5V 32-BSSOP (0.295, 7.50mm Width)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC33880PEWR2 information

NXP MC33880PEWR2 technical specifications, attributes, parameters and parts with similar specifications to NXP MC33880PEWR2.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-BSSOP (0.295, 7.50mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 32
  • ECCN Code
  • EAR99
  • Terminal Finish
  • MATTE TIN
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • MC33880
  • JESD-30 Code
  • R-PDSO-G32
  • Number of Outputs
  • 8
  • Supply Voltage-Max (Vsup)
  • 5.25V
  • Supply Voltage-Min (Vsup)
  • 4.75V
  • Interface
  • SPI
  • Analog IC - Other Type
  • BRUSH DC MOTOR CONTROLLER
  • Current - Output (Max)
  • 800mA
  • Output Configuration
  • High Side or Low Side
  • Voltage - Supply (Vcc/Vdd)
  • 4.75V~5.25V
  • Switch Type
  • General Purpose
  • Ratio - Input:Output
  • 1:8
  • Voltage - Load
  • 5.5V~24.5V
  • Fault Protection
  • Current Limiting (Fixed), Open Load Detect, Over Voltage
  • Rds On (Typ)
  • 550m ?
  • Length
  • 11mm
  • Height Seated (Max)
  • 2.65mm
  • Width
  • 7.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC33880PEWR2.

Environmental Information:

PCN Packaging:

MC33880PEWR2 Overview


Tape & Reel (TR) is the way it's packaged.Package 32-BSSOP (0.295, 7.50mm Width) contains it.The lighting driver has the mounting type Surface Mount.It owns the General Purpose switch type.Keeping the temperature at -40°C~150°C TJ ensures reliable operation.The LED driver has 8 outputs.Operation is based on 4.75V~5.25V supply voltage.Voltage output is N-Channel volts at maximum.The MC33880 family contains this object.It has a total of 32 terminations.It has 1 functions.The LED driver output is limited to 800mAV.Supply voltages of 5V allow for high efficiency.The Vsup value (maximum supply voltage) is set to 5.25V.Normal operation requires a voltage above 4.75V for the supply voltage.In this case, the analog IC is BRUSH DC MOTOR CONTROLLER.

MC33880PEWR2 Features


Supplied from 5V


MC33880PEWR2 Applications


There are a lot of NXP USA Inc.
MC33880PEWR2 Power Switches ICs applications.


  • USB Power Distribution
  • Notebook PC
  • Telecom and Network Systems
  • PC Card Hot Swap
  • Storage Drives
  • Portable/Handheld Devices
  • Wireless/Networking Cards
  • Low Voltage I/O System Power
