MA/COM MAAM-011229-TR1000

Manufacturer No:

MAAM-011229-TR1000

Manufacturer:

MA/COM

Package:

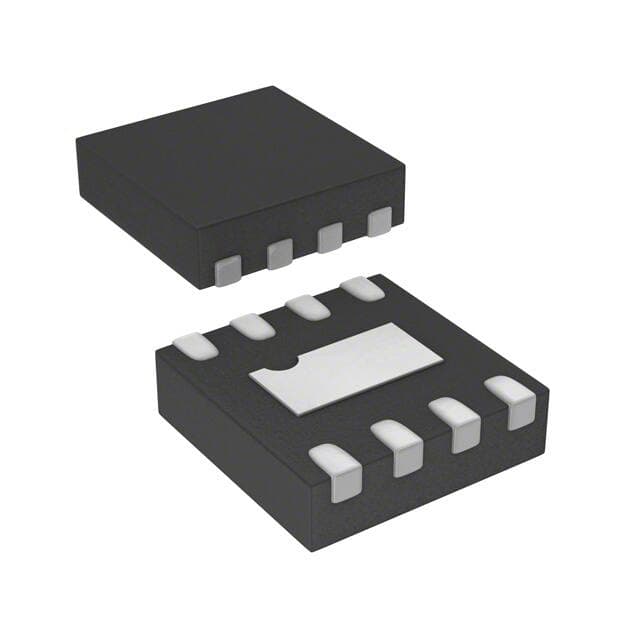

8-VFDFN Exposed Pad

Description:

18dB WIDE BAND LOW POWER Tape & Reel (TR) 50MHz~4GHz 3V~5V P1dB:18.5dBm 2.1dB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MAAM-011229-TR1000 information

MA/COM MAAM-011229-TR1000 technical specifications, attributes, parameters and parts with similar specifications to MA/COM MAAM-011229-TR1000.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
8-VFDFN Exposed Pad

Surface Mount
YES

Packaging
Tape & Reel (TR)

Published
2016

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Additional Feature
LOW NOISE

Voltage - Supply
3V~5V

Number of Functions
1

Construction
COMPONENT

Frequency
50MHz~4GHz

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
3/5V

Current - Supply
80mA

Gain
18dB

RF/Microwave Device Type
WIDE BAND LOW POWER

Input Power-Max (CW)
30dBm

Characteristic Impedance
50Ohm

Noise Figure
2.1dB

P1dB
18.5dBm

Download datasheets and manufacturer documentation for MA/COM MAAM-011229-TR1000.

Datasheets:

macomtechnologysolutions-maam011229tr1000-datasheets-1735.pdf

MAAM-011229-TR1000 Overview

RF Amplifier with cost-effective WIDE BAND LOW POWER RF/Microwave Device Type.High reliability can be achieved by using the advanced RF Amp' packaging Tape & Reel (TR).Due to its 8-VFDFN Exposed Pad packaging, it is convenient to ship overseas.Surface Mount is the recommended mount Amplifiers RF direction.Amplifiers RFs that can supply 3V~5V volts are available.There are two additional features of this RF Amp: LOW NOISE1 functions (s) are included in the RF Amplifier.It operates on a supply RF Amplifiers' current of 80mA for its operation.Various 8 terminations.

MAAM-011229-TR1000 Features

WIDE BAND LOW POWER RF/Microwave Amplifier
3V~5V voltage
80mA current

MAAM-011229-TR1000 Applications

There are a lot of M/A-Com Technology Solutions
MAAM-011229-TR1000 RF Amplifiers applications.

Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
