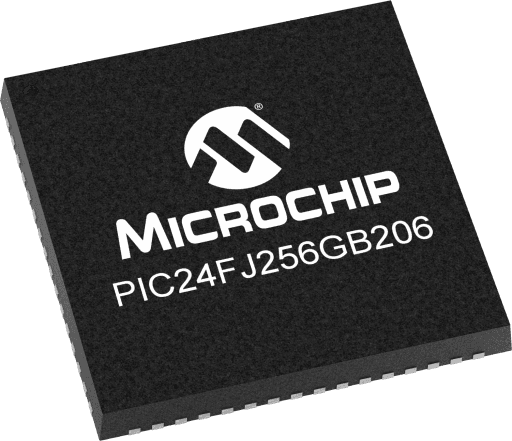

Microchip PIC24FJ256GB206-I/PT
Microchip PIC24FJ256GB206-I/PTMicrochip PIC24FJ256GB206-I/PT

Microchip PIC24FJ256GB206-I/PT

Manufacturer No:

PIC24FJ256GB206-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

16 MIPS, 256KB Flash, 96KB RAM, 64 pins, USB

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ256GB206-I/PT information

Microchip PIC24FJ256GB206-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ256GB206-I/PT.

  • Type
  • Parameter
  • CPU Type
  • 16-bit PIC MCU
  • CPU Speed Max MHz (megahertz)
  • 16
  • Program Memory Size (KB)
  • 256
  • Multiple Flash Panels
  • No
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 85
  • Operation Voltage Min.(V)
  • 2.2
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 64
  • Low Power
  • No
  • Number of Comparators
  • 3
  • ADC Modules
  • 1
  • ADC Channels
  • 16
  • ADC Resolution Max
  • 10
  • ADC Sampling Rate (ksps)
  • 500
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 0
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 0
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 9
  • Output Compare Channels
  • 9
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes
  • Supported in MPLAB Code Configurator
  • Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ256GB206-I/PT.

Data Sheets:

Programming Specifications:

Errata:

Brochures:

Reference Manual:

Legacy Collaterals:

Application Notes:

Ideal for USB related applications that can benefit from the 16-bit MCU, USB, 96K byte RAM, and other peripherals.

USB Application Design Center



    Universal Serial Bus Features
  • USB v2.0 On-the-Go compliant
  • Dual role capable, can act as either Host or Device
  • Low speed(1.5Mb/s) and full speed(12 Mb/s) operation in host mode
  • Full speed USB operation in Device mode
    Analog Features
  • Up to 24x, Capacitive touch sensing
  • Up to 24x, 10-Bit, ADC at 500 ksps
  • 3x Analog Comparators with Programmable Input/Output Configuration
    Power Management
  • On-Chip Voltage Regulator of 1.8V
  • Switch between Clock Sources in Real Time
  • Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
  • Run Mode: 800 uA/MIPS, 3.3V Typical
  • Sleep mode Current Down to 20 uA, 3.3V Typical
  • Standby Current with 32 kHz Oscillator: 22 uA, 3.3V Typical
