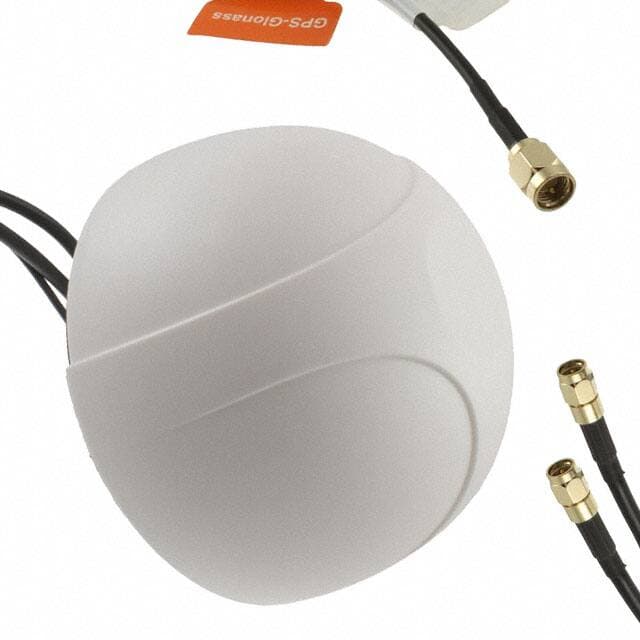

Taoglas Limited MA710.A.ABI.001

Manufacturer No:

MA710.A.ABI.001

Manufacturer:

Package:

Description:

6 Bands Dome Wide B Panel Mount SMA Male 742MHz 892MHz 1.575GHz 1.9GHz 2.8GHz 2.52dBi, 1.48dBi, 32dBi, 1.22dBi, 0.15dBi, 3.2dBi Bulk 3.374 85.70mm CDMA, GPS, GSM, LTE, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA710.A.ABI.001 information

Taoglas Limited MA710.A.ABI.001 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA710.A.ABI.001.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
Pantheon

Feature
LNA, Filter

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, GPS, GSM, LTE, UMTS

Ingress Protection
IP67

Frequency
3.5GHz

Impedance
50Ohm

Gain
2.52dBi, 1.48dBi, 32dBi, 1.22dBi, 0.15dBi, 3.2dBi

Max Frequency
3.5GHz

Frequency Range
698MHz~787MHz 824MHz~960MHz 1.575GHz~1.602GHz 1.71GHz~2.17GHz 2.4GHz~2.5GHz 2.6GHz~3.5GHz

RF Family/Standard
Cellular, Navigation

Antenna Type
Dome

VSWR
2.5, 3, 2.5, 3, 2.5, 2

Number of Bands
6

Frequency Group
Wide B

Frequency (Center/Band)
742MHz 892MHz 1.575GHz 1.9GHz 2.8GHz

Height
85.6996mm

Height (Max)
3.374 85.70mm

Ratings
IP67

Download datasheets and manufacturer documentation for Taoglas Limited MA710.A.ABI.001.

Environmental Information:

taoglaslimited-fxr06520075xadg-environmentalinformation-5077.pdf

PCN Packaging:

taoglaslimited-fxr06520075xadg-pcnpackaging-5081.pdf

MA710.A.ABI.001 Overview

It is suitable for general RF Antennas when it is set to Panel Mount.There is a Antenna RF in the Pantheon series.Bulk is the solid enclosure in which RF modulator is packaged.This Panel makes it suitable for most RF ics.

MA710.A.ABI.001 Features

With Panel Mount
Pantheon series

MA710.A.ABI.001 Applications

There are a lot of Taoglas Limited
MA710.A.ABI.001 RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
