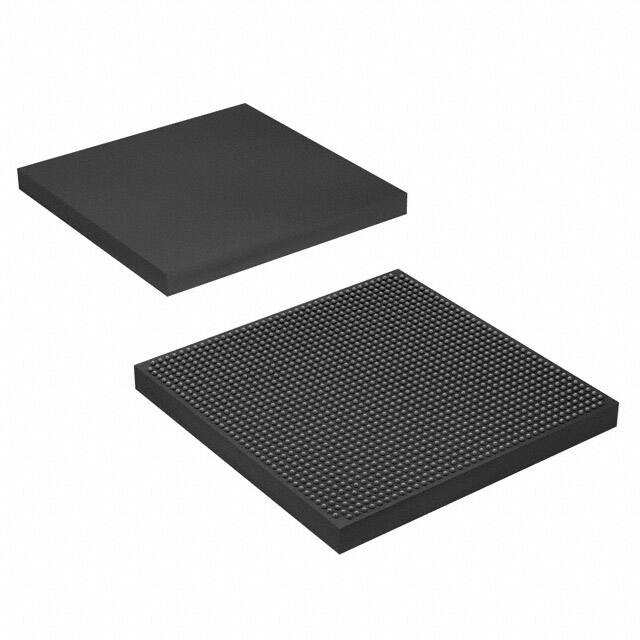

INTEL 5SGXMA7K2F40I3N
Manufacturer No:
5SGXMA7K2F40I3N
Manufacturer:
Package:
1517-BBGA, FCBGA
Description:
3.5mm mm FPGAs Stratix® V GX Series 1517-BBGA, FCBGA 1mm mm
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
5SGXMA7K2F40I3N information
INTEL 5SGXMA7K2F40I3N technical specifications, attributes, parameters and parts with similar specifications to INTEL 5SGXMA7K2F40I3N.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 1517-BBGA, FCBGA
- Surface Mount
- YES
- Operating Temperature
- -40°C~100°C TJ
- Packaging
- Tray
- Series
- Stratix® V GX
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- ECCN Code
- 3A001.A.7.A
- HTS Code
- 8542.39.00.01
- Subcategory
- Field Programmable Gate Arrays
- Technology
- CMOS
- Voltage - Supply
- 0.82V~0.88V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Supply Voltage
- 0.85V
- Terminal Pitch
- 1mm
- Base Part Number
- 5SGXMA7
- JESD-30 Code
- S-PBGA-B1517
- Number of Outputs
- 696
- Qualification Status
- Not Qualified
- Power Supplies
- 0.851.52.52.5/31.2/3V
- Number of I/O
- 696
- Organization
- 23472 CLBS
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 622000
- Total RAM Bits
- 51200000
- Number of LABs/CLBs
- 234720
- Length
- 40mm
- Height Seated (Max)
- 3.5mm
- Width
- 40mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for INTEL 5SGXMA7K2F40I3N.
Datasheets:
5SGXMA7K2F40I3N Overview
The package that contains this software is called 1517-BBGA, FCBGA. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. There are 696 I/Os for better data transfer. In order to construct a fundamental building block, 622000 logic elements/cells are required. In order for the device to operate, a supply voltage of 0.85V volts needs to be provided. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. FPGA modules can be attached to development boards using a Surface Mount-connector. This device is powered by a 0.82V~0.88V battery. There are many types of FPGAs in the Stratix® V GX series, this is one of them. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range -40°C~100°C TJ while the machine is operating. A device such as this one has 696 outputs built into it. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. As far as the RAM bits are concerned, this device offers you a total of 51200000. If you are looking for related parts, you can use the base part number 5SGXMA7 as a starting point. 234720 LABs/CLBs are configured on this FPGA. In order for fpga electronics to work, fpga electronics requires a 0.851.52.52.5/31.2/3V power supply.
5SGXMA7K2F40I3N Features
696 I/Os
Up to 51200000 RAM bits
5SGXMA7K2F40I3N Applications
There are a lot of Intel
5SGXMA7K2F40I3N FPGAs applications.
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
- Aerospace and Defense
- Medical Electronics
