ADI AD2S1210DSTZ

Manufacturer No:

AD2S1210DSTZ

Manufacturer:

ADI

Package:

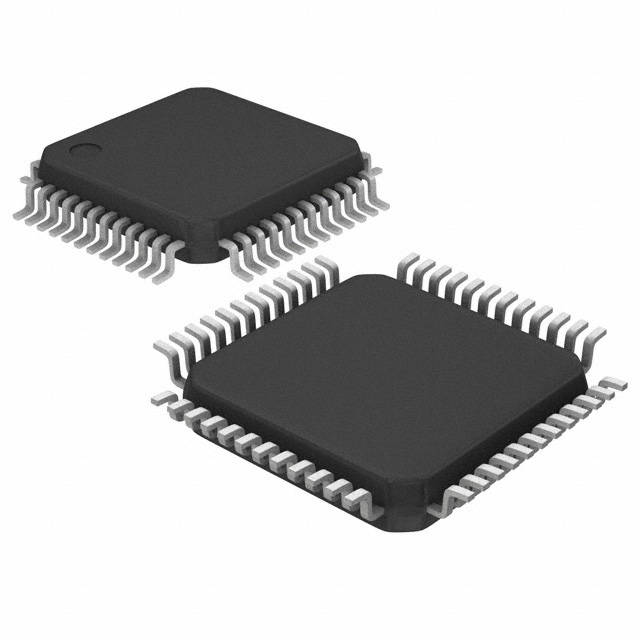

48-LQFP

Description:

Tray Active 10, 12, 14, 16 b b Special Purpose ADCs/DACs Serial, Parallel 4.75V~5.25V V 48-LQFP Surface Mount 48-LQFP (7x7)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD2S1210DSTZ information

ADI AD2S1210DSTZ technical specifications, attributes, parameters and parts with similar specifications to ADI AD2S1210DSTZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
48-LQFP

Number of Pins
48

Supplier Device Package
48-LQFP (7x7)

Operating Temperature
-40°C~125°C

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
R/D Converter

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Voltage - Supply
4.75V~5.25V

Base Part Number
AD2S1210

Output Voltage
4V

Operating Supply Voltage
5V

Number of Channels
2

Interface
Parallel, Serial

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Nominal Supply Current
12mA

Number of Bits
16

Supply Type
Analog, Digital

Data Interface
Serial, Parallel

Voltage Supply Source
Analog Digital

Resolution (Bits)
10, 12, 14, 16 b

Height
1.45mm

Length
7.2mm

Width
7.2mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD2S1210DSTZ.

AD2S1210DSTZ Description

The AD2S1210DSTZ is a complete 10-bit to 16-bit resolution tracking resolver-to-digital converter, integrating an onboard programmable sinusoidal oscillator

that provides sine wave excitation for resolvers. The converter accepts 3.15 V p-p ± 27% input signals, in the range of 2 kHz to 20 kHz on the sine and

cosine inputs. A Type II servo loop is employed to track the inputs and convert the input sine and cosine information into a digital representation of the input

angle and velocity. The maximum tracking rate is 3125 rps.

AD2S1210DSTZ Features

Complete monolithic resolver-to-digital converter

3125 rps maximum tracking rate (10-bit resolution and CLKIN = 10.24 MHz)

±2.5 (+ 1 LSB) arc minutes of angular accuracy (B and D grades)

The 10-/12-/14-/16-bit resolution, set by the user

Parallel and serial 10-bit to 16-bit data ports

Absolute position and velocity outputs

System fault detection

Programmable fault detection thresholds

Differential inputs

Incremental encoder emulation

Programmable sinusoidal oscillator on-board

Compatible with DSP and SPI standards

5 V supply with 2.3 V to 5.25 V logic interface

?40°C to +125°C temperature rating (C, D, and W grades)

AEC-Q100 qualified for automotive applications

ASIL B safety assessment certificate available

Safety manual available

AD2S1210DSTZ Applications

DC and ac servo motor control

Encoder emulation

Electric power steering

Electric vehicles

Integrated starter generators and alternators

Automotive motion sensing and control
