Taoglas Limited MA520.A.BC.008

Manufacturer No:

MA520.A.BC.008

Manufacturer:

Package:

Description:

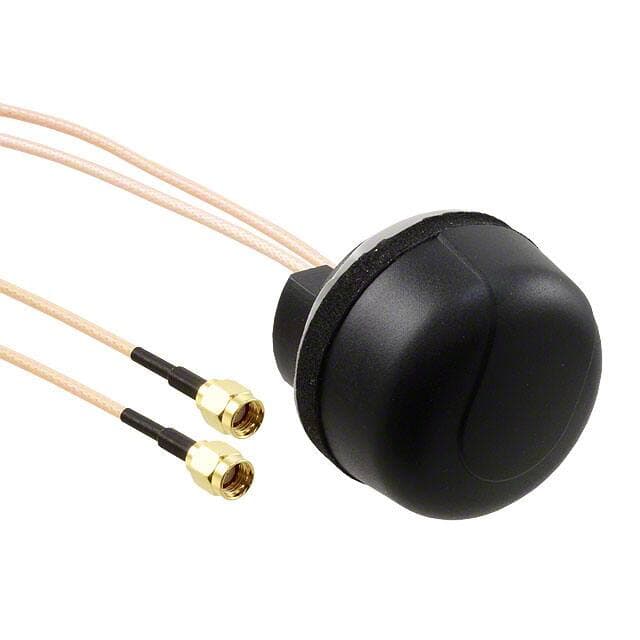

7 Bands Dome Wide B Panel Mount SMA Male, RP-SMA Male (2) 850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 2.4GHz 5GHz 1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi Bulk 1.122 28.50mm CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MA520.A.BC.008 information

Taoglas Limited MA520.A.BC.008 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited MA520.A.BC.008.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Panel

Mounting Type
Panel Mount

Packaging
Bulk

Series
Hercules

Feature
Cable - 2m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male, RP-SMA Male (2)

Applications
CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi

Max Power Dissipation
10W

Ingress Protection
IP67, IP69K

Impedance
50Ohm

Power - Max
10W

Gain
1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi

Max Frequency
5.825GHz

Frequency Range
850MHz~960MHz 1.71GHz~2.17GHz 2.4GHz~2.483GHz 5GHz~5.825GHz

RF Family/Standard
Cellular, WiFi

Antenna Type
Dome

Number of Bands
7

Frequency Group
Wide B

Frequency (Center/Band)
850MHz 900MHz 1.8GHz 1.9GHz 2.1GHz 2.4GHz 5GHz

Return Loss
-8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB

Height
29.0068mm

RoHS Status
RoHS Compliant

Ratings
IP67

Download datasheets and manufacturer documentation for Taoglas Limited MA520.A.BC.008.

MA520.A.BC.008 Overview

The Panel Mount allows it to be used for RF Antennas in general.Hercules is a series of Antenna RFs.Bulk solid enclosure protects the RF modulator.In most RF ic designs, it is qualified as a Panel.

MA520.A.BC.008 Features

With Panel Mount
Hercules series

MA520.A.BC.008 Applications

There are a lot of Taoglas Limited
MA520.A.BC.008 RF Antennas applications.

Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
