Manufacturer No:

M80-8420742

Manufacturer:

Harwin

Package:

SIL

Description:

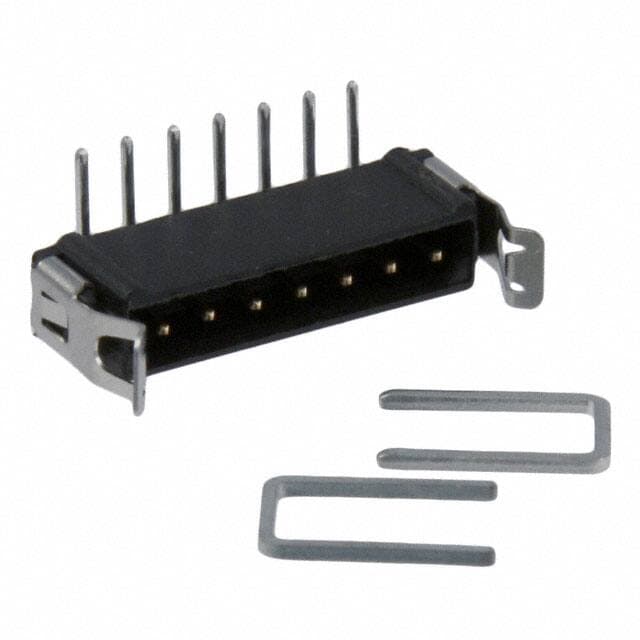

Datamate L-Tek Series 1-Row Plug Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyamide (PA46), Nylon 4/6, Glass Filled 7-Position Board to Board or Cable 0.156 3.96mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M80-8420742 information

Harwin M80-8420742 technical specifications, attributes, parameters and parts with similar specifications to Harwin M80-8420742.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Package / Case
  • SIL
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyamide (PA46), Nylon 4/6, Glass Filled
  • Housing Material
  • Polyamide
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • Datamate L-Tek
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Feature
  • Strain Relief Clips
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Plug
  • Number of Positions
  • 7
  • Number of Rows
  • 1
  • Additional Feature
  • LATCHED
  • HTS Code
  • 8536.69.40.40
  • Subcategory
  • Headers and Edge Type Connectors
  • Voltage - Rated DC
  • 120V
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 2.2A
  • Orientation
  • Right Angle
  • Terminal Pitch
  • 2mm
  • Insulation Height
  • 0.156 3.96mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.079 2.00mm
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall

Download datasheets and manufacturer documentation for Harwin M80-8420742.

Datasheets:

M80-8420742 Overview


This product is packaged in a Plug box.Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Datamate L-Tek Series.Furthermore, there are other features such as LATCHED, to name a few.SIL refers to a package enclosing a device.In many ways, Strain Relief Clips makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
