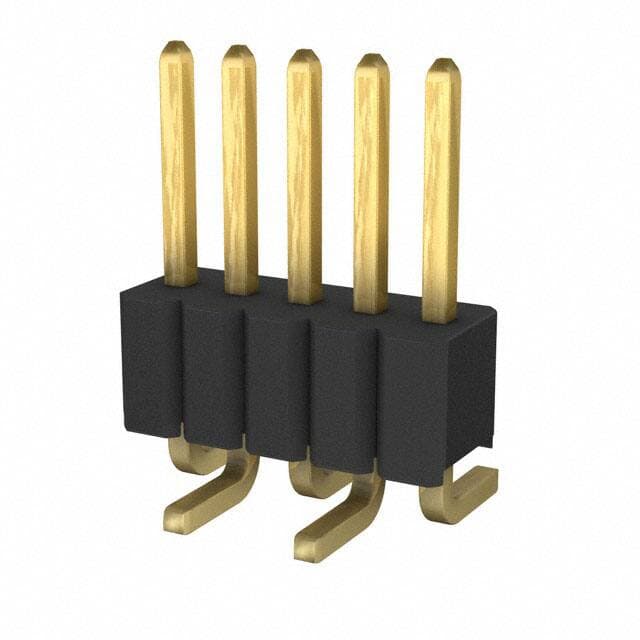

Harwin M52-040000P0545

Manufacturer No:

M52-040000P0545

Manufacturer:

Harwin

Package:

SIL

Description:

Archer M52 Series 1-Row Header Solder Brass Bulk Surface Mount Gold Polyamide (PA6T), Nylon 6T 5-Position Board to Board 0.098 2.50mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M52-040000P0545 information

Harwin M52-040000P0545 technical specifications, attributes, parameters and parts with similar specifications to Harwin M52-040000P0545.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Brass

Mounting Type
Surface Mount

Package / Case
SIL

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Housing Material
Nylon

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
Archer M52

Published
2005

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
5

Number of Rows
1

Voltage - Rated
500V

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
5

Orientation
Straight

Depth
2.5mm

Insulation Height
0.098 2.50mm

Style
Board to Board

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.050 1.27mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Voltage - Rated AC
150V

Reliability
COMMERCIAL

Shrouding
Unshrouded

Number Of PCB Rows
2

Lead Pitch
1.27mm

Contact Length - Mating
0.157 4.00mm

PCB Contact Pattern
STAGGERED

Download datasheets and manufacturer documentation for Harwin M52-040000P0545.

Datasheets:

harwininc-m52040000p0545-datasheets-6450.pdf

M52-040000P0545 Overview

It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.It belongs to the Archer M52 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.In the packaging with the SIL, there is a device enclosed in the package.The device runs in -40°C~105°C Operating Temperature.
