Harwin M20-6102045
Harwin M20-6102045

Harwin M20-6102045

Manufacturer No:

M20-6102045

Manufacturer:

Harwin

Package:

Description:

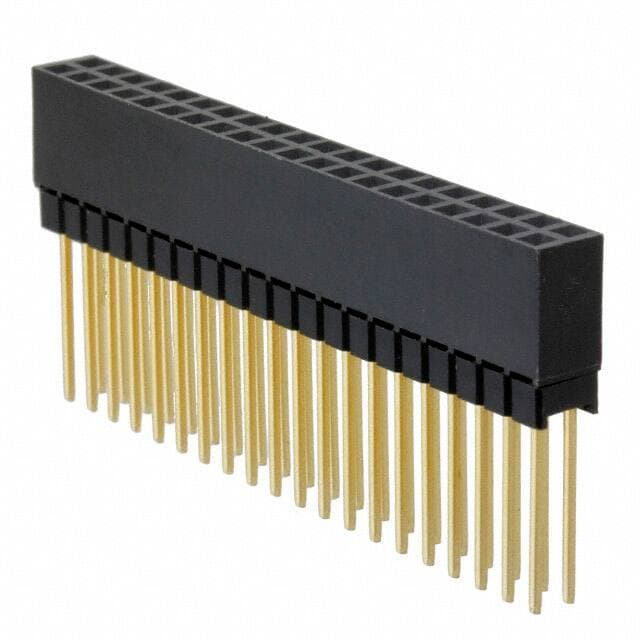

M20 Series Stackthrough, Unkeyed (PC/104) Solder Gold Black 3.00?in 0.076?m 40 Positions Pitch: 0.100 2.54mm -55°C~105°C Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M20-6102045 information

Harwin M20-6102045 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-6102045.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Material
  • Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Material
  • Nylon
  • Housing Material
  • Polyester
  • Weight
  • 6.186008g
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tube
  • Series
  • M20
  • Published
  • 2006
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Stackthrough, Unkeyed (PC/104)
  • Number of Positions
  • 40
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Additional Feature
  • ROHS COMPLIANT
  • Subcategory
  • Headers and Edge Type Connectors
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.100 2.54mm
  • Total Number of Contacts
  • 40
  • Orientation
  • Straight
  • Depth
  • 5.25mm
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.197 inch
  • UL Flammability Code
  • 94V-0
  • Rated Current (Signal)
  • 3A
  • Contact Style
  • SQ PIN-SKT
  • Contact Resistance
  • 30mOhm
  • Insulation Resistance
  • 5GOhm

Download datasheets and manufacturer documentation for Harwin M20-6102045.

Datasheets:

M20-6102045 Overview


The product comes in a package of Stackthrough, Unkeyed (PC/104).Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the M20 Series.Among other features are ROHS COMPLIANT, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -55°C~105°C.
