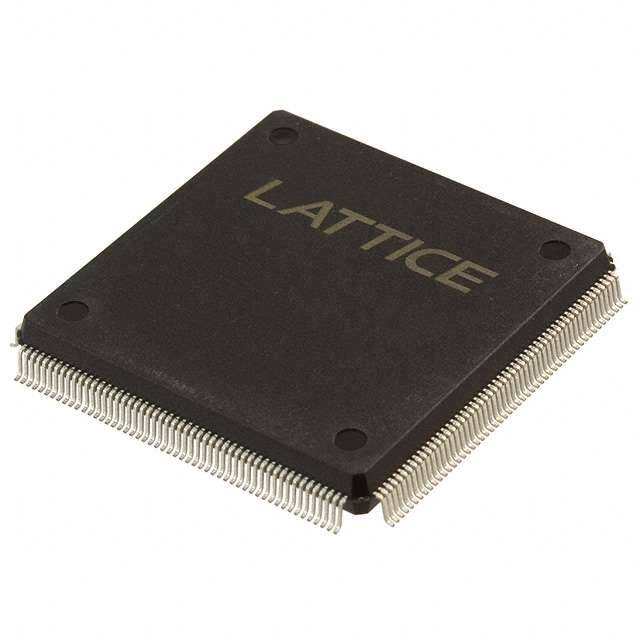

LATTICE M4A3-256/128-10YNI

Manufacturer No:

M4A3-256/128-10YNI

Manufacturer:

LATTICE

Package:

208-BFQFP

Description:

0.5mm PMIC ispMACH® 4A Series M4A3-256 208 Pin 3.3V 208-BFQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M4A3-256/128-10YNI information

LATTICE M4A3-256/128-10YNI technical specifications, attributes, parameters and parts with similar specifications to LATTICE M4A3-256/128-10YNI.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
208-BFQFP

Number of Pins
208

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
ispMACH® 4A

Published
1998

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
208

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
YES

HTS Code
8542.39.00.01

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
M4A3-256

Pin Count
208

Qualification Status
Not Qualified

Programmable Type
In System Programmable

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Number of I/O
128

Memory Type
EEPROM

Propagation Delay
10 ns

Number of Gates
10000

Max Frequency
182MHz

Output Function
MACROCELL

Number of Macro Cells
256

JTAG BST
YES

Number of Dedicated Inputs
14

Voltage Supply - Internal
3V~3.6V

Length
28mm

Height Seated (Max)
4.1mm

Width
28mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LATTICE M4A3-256/128-10YNI.

M4A3-256/128-10YNI Overview

There are 256 macro cells, which provide radio coverage via high-power cell towers, antennas or masts in a mobile phone network.The product is contained in a 208-BFQFP package.It is equipped with 128 I/O ports.The termination of a device is set to 208.This electrical part has a terminal position of QUAD and is connected to the ground.The power source is powered by 3.3V volts.It belongs to the family Programmable Logic Devices.Ideally, the chip should be packaged by Tray.A reliable operation is ensured by the operating temperature of [0].Ensure that the chip is mounted by Surface Mount.In this case, it is a type of FPGA belonging to the ispMACH® 4A series.There are 208 pins on the chip.It is also possible to find YES when using this device.M4A3-256 contains its related parts.In digital circuits, 10000 gates serve as building blocks.In general, it is recommended to store data in EEPROM.It is mounted by Surface Mount.This board has 208 pins.A maximum supply voltage of 3.6V is used in its operation.It is powered by 3V as its minimum supply voltage.It is recommended that the maximal frequency be lower than 182MHz.The status of input signals is detected by 14 dedicated inputs.

M4A3-256/128-10YNI Features

208-BFQFP package
128 I/Os
The operating temperature of -40°C~85°C TA
208 pin count
208 pins

M4A3-256/128-10YNI Applications

There are a lot of Lattice Semiconductor Corporation
M4A3-256/128-10YNI CPLDs applications.

Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
Digital designs
Field programmable gate
Address decoding
D/T registers and latches
