Harwin M20-9760246
Manufacturer No:
M20-9760246
Manufacturer:
Package:
Description:

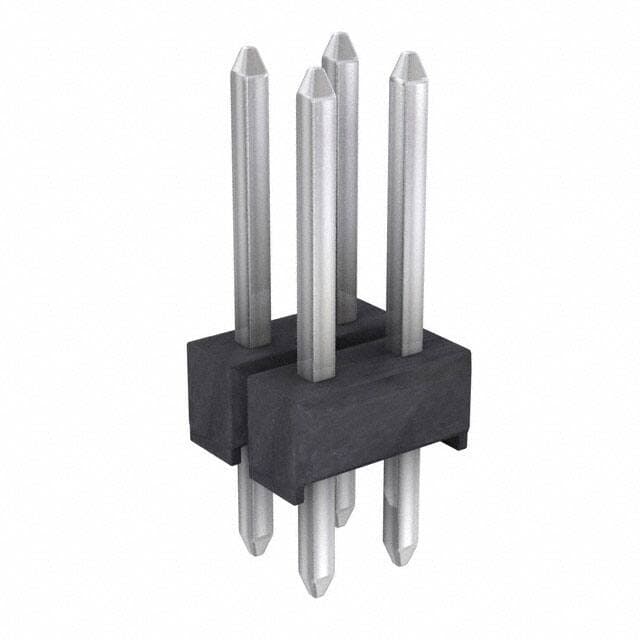

M20 Series 2-Row Header, Cuttable Solder Brass Bulk Through Hole Tin Polyamide (PA6T), Nylon 6T 4-Position Board to Board or Cable 0.100 2.54mm Height
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
M20-9760246 information
Harwin M20-9760246 technical specifications, attributes, parameters and parts with similar specifications to Harwin M20-9760246.
- Type
- Parameter
- Factory Lead Time
- 13 Weeks
- Contact Material
- Brass
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Square
- Insulation Material
- Polyamide (PA6T), Nylon 6T
- Housing Material
- Nylon
- Operating Temperature
- -40°C~105°C
- Packaging
- Bulk
- Series
- M20
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Header, Cuttable
- Number of Positions
- 4
- Number of Rows
- 2
- Voltage - Rated
- 750V
- Additional Feature
- ROHS COMPLIANT
- Fastening Type
- Push-Pull
- Subcategory
- Headers and Edge Type Connectors
- Contact Finish - Mating
- Tin
- DIN Conformance
- NO
- IEC Conformance
- NO
- Filter Feature
- NO
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Current Rating (Amps)
- 3A per Contact
- Orientation
- Straight
- Depth
- 5.08mm
- Insulation Height
- 0.100 2.54mm
- Style
- Board to Board or Cable
- Number of Positions Loaded
- All
- Reach Compliance Code
- not_compliant
- Current Rating
- 3A
- Pitch - Mating
- 0.100 2.54mm
- Number of Conductors
- ONE
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Row Spacing - Mating
- 0.100 (2.54mm)
- Contact Length - Post
- 0.122 3.10mm
- Shrouding
- Unshrouded
- Number Of PCB Rows
- 2
- Contact Length - Mating
- 0.228 5.80mm
Download datasheets and manufacturer documentation for Harwin M20-9760246.
Datasheets:
M20-9760246 Overview
It comes in Header, Cuttable packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the M20 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
