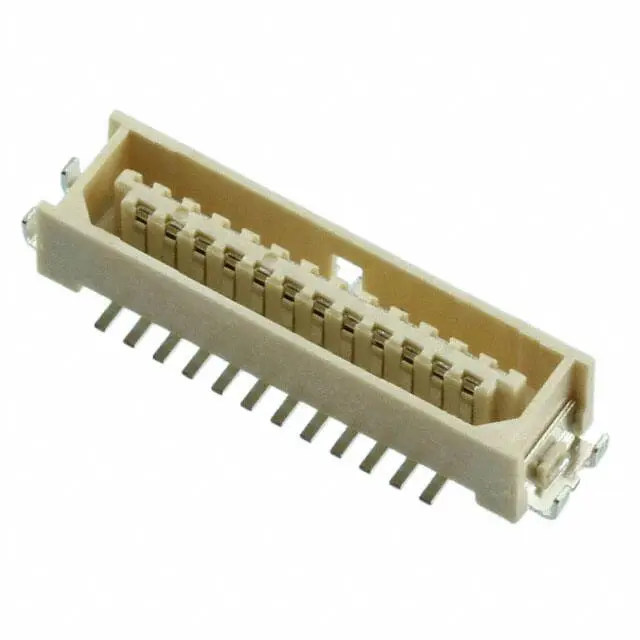

Harwin M40-6002546R

Manufacturer No:

M40-6002546R

Manufacturer:

Harwin

Package:

Description:

Plug, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.039 1.00mm Surface Mount 25 Positions M40 Tin Solder Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

M40-6002546R information

Harwin M40-6002546R technical specifications, attributes, parameters and parts with similar specifications to Harwin M40-6002546R.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Bronze

Mount
Surface Mount

Mounting Type
Surface Mount

Housing Material
Thermoplastic

Packaging
Tape & Reel (TR)

Series
M40

Published
2013

JESD-609 Code
e3

Feature
Board Guide, Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Center Strip Contacts

Number of Positions
25

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Male

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Subcategory
Headers and Edge Type Connectors

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.039 1.00mm

Total Number of Contacts
25

Orientation
Straight

Depth
4.2mm

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Tin

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
STAGGERED

Body Breadth
0.165 inch

UL Flammability Code
94V-0

Housing Color
Natural

Rated Current (Signal)
0.5A

Contact Resistance
50mOhm

Insulation Resistance
500000000Ohm

Max Voltage Rating (AC)
150V

Max Current Rating
500mA

Download datasheets and manufacturer documentation for Harwin M40-6002546R.

Datasheets:

harwininc-m406002546r-datasheets-3974.pdf

M40-6002546R Overview

Packaging is in the form of Plug, Center Strip Contacts.An orange Tape & Reel (TR) case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the M40 Series.In operation, Board Guide, Solder Retention can be maintained as long as Board Guide, Solder Retention is unchanged.A Surface Mount socket is required for the mounting of this part.If the temperature is below 125°C, it's best to use it.-55°C is the minimum temperature for this device.Other features include ROHS COMPLIANT, to name just a few.

M40-6002546R Features

M40 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: ROHS COMPLIANT
