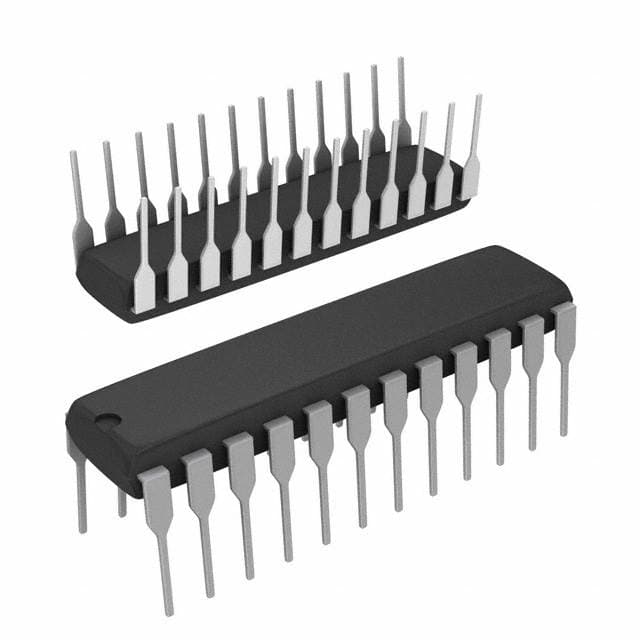

ADI LTC1068CN#PBF

Manufacturer No:

LTC1068CN#PBF

Manufacturer:

ADI

Package:

24-DIP (0.300, 7.62mm)

Description:

Tube Active Filters Active 24 ROHS3 Compliant DUAL 5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC1068CN#PBF information

ADI LTC1068CN#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC1068CN#PBF.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-DIP (0.300, 7.62mm)

Number of Pins
24

Packaging
Tube

Published
2006

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Voltage - Supply
3.14V~11V ±3.14V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LTC1068

Pin Count
24

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Nominal Supply Current
9.5mA

Supply Current-Max (Isup)
12mA

Filter Type
Universal Switched Capacitor

Neg Supply Voltage-Nom (Vsup)
-5V

Max Dual Supply Voltage
5.5V

Min Dual Supply Voltage
1.57V

Dual Supply Voltage
5V

Filter Order
8th

Frequency - Cutoff or Center
50kHz

Number of Filters
4

Transfer Characteristics
RESISTOR PROGRAMMABLE

Poles and Zeros
2 AND 0

Height
3.3mm

Length
32.51mm

Width
6.48mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ADI LTC1068CN#PBF.

Datasheets:

lineartechnologyanalogdevices-ltc106850igtrpbf-datasheets-2228.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

LTC1068CN#PBF Overview

This product is packaged in a 24-DIP (0.300, 7.62mm) package.Packaged in a Tube format.Gadget mounting type is Through Hole.Universal Switched Capacitor is the type of filter for this part.The device should be able to work with a 3.14V~11V ±3.14V~5.5V-type power source.In total, there are 24 pins on it.Device components with a LTC1068 are the best.There is a cutoff or center frequency for the device at 50kHz frequency.Reflow reaches NOT SPECIFIED at its peak.At all times, the component is powered by 5V.Filters are represented by 4.Operating it should cause 0°C to be warmer than when not operating it.The maximum working temperature at present is 70°C.There is still a pin number 24 on the component.A maximum supply temperature of 12mA can be handled by the device.The Through Hole mount comes with it.The DC DC switching regulator is powered by a voltage of 5V.Only 5.5V supply voltage can be used to operate it.In order to operate, it requires a voltage of 1.57V.
