LATTICE LFE3-150EA-8FN1156I

Manufacturer No:

LFE3-150EA-8FN1156I

Manufacturer:

LATTICE

Package:

1156-BBGA

Description:

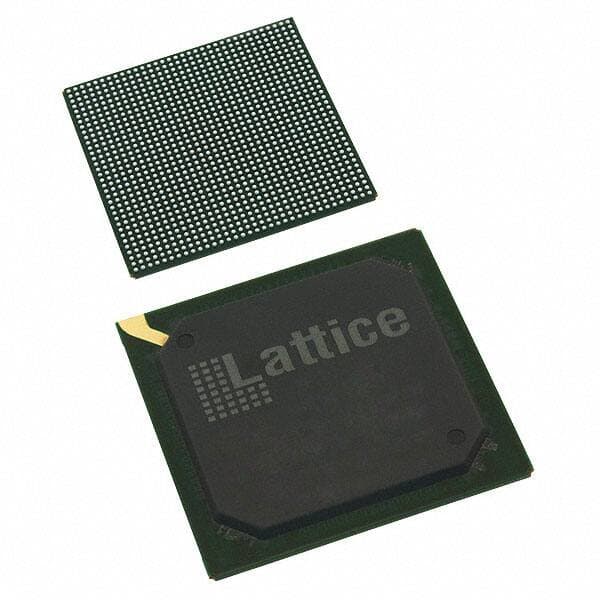

Description: Field Programmable Gate Array, 500MHz, 149000-Cell, PBGA1156, 35 X 35 MM, LEAD FREE, FPBGA-1156

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFE3-150EA-8FN1156I information

LATTICE LFE3-150EA-8FN1156I technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFE3-150EA-8FN1156I.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Pin Count
1156

Reach Compliance Code
compliant

ECCN Code
3A991.D

HTS Code
8542.39.00.01

Clock Frequency-Max
3289 MHz

Combinatorial Delay of a CLB-Max
0.281 ns

JESD-30 Code
S-PBGA-B1156

JESD-609 Code
e1

Length
35 mm

Moisture Sensitivity Level
3

Number of CLBs
18625

Number of Inputs
586

Number of Logic Cells
149000

Number of Outputs
586

Number of Terminals
1156

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
18625 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
BGA

Package Shape
SQUARE

Package Style
GRID ARRAY

Peak Reflow Temperature (Cel)
250

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
2.6 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Width
35 mm

Download datasheets and manufacturer documentation for LATTICE LFE3-150EA-8FN1156I.

Datasheets:

LATT-S-A0020616466-1.pdf

LFE3-150EA-8FN1156I Overview

In the 1156-BBGA package, you will find fpga chips. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. The device has 586 I/O ports for more coherent data transfer. To form a fundamental building block, there are 149000 logic elements/cells. In order to operate fpga chips, a voltage supply of 1.2V volts is required. FPGA parts like this belong to the Field Programmable Gate Arrays family. Surface Mount-connectors can be used to attach this FPGA module to the development board. There is a 1.14V~1.26V-volt supply voltage required for the device to operate. The ECP3 Series is one of the types of FPGAs that belong to this type. As far as the operating temperature is concerned, it should be kept within -40°C~100°C TJ when operating. A total of 586 outputs are incorporated into this device. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 7014400 bFpga chipss. You can find related parts by using the part number LFE3-150, which is its base part number. It is crucial that the RAM si856.3kBe of this FPGA module reaches 856.3kB so that the program can run normally. In order to make it work, 1156 pins have been designed. A total of 18625 LABs/CLBs are included in this FPGA. In order for this FPGA to work properly in accordance with its specifications, it is necessary that it is mounted in Surface Mount. Its flexibility is fully utilized when operated with a supply voltage of 1.2V. It usually uses a 500MHz crystal.

LFE3-150EA-8FN1156I Features

586 I/Os
Up to 7014400 RAM bits
1156 LABs/CLBs

LFE3-150EA-8FN1156I Applications

There are a lot of Lattice Semiconductor Corporation
LFE3-150EA-8FN1156I FPGAs applications.

Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
