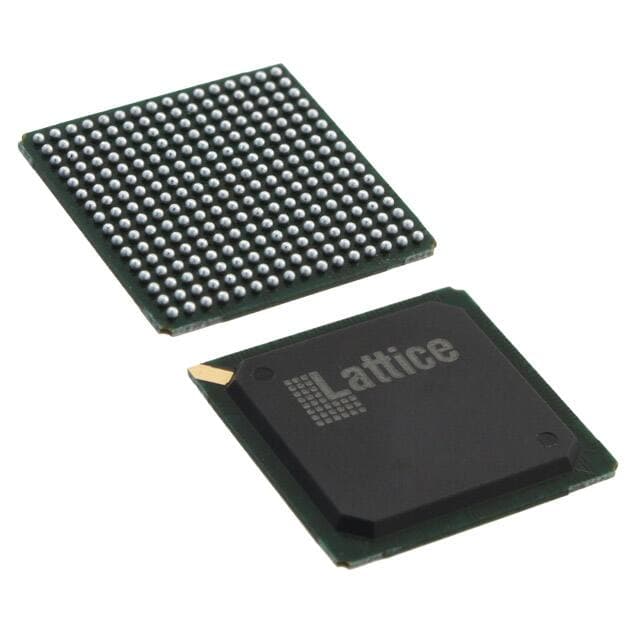

LATTICE LFE2-6E-5FN256C

Manufacturer No:

LFE2-6E-5FN256C

Manufacturer:

LATTICE

Package:

FPBGA-256

Description:

Description: Field Programmable Gate Array, 311MHz, 6000-Cell, PBGA256, 17 X 17 MM, LEAD FREE, FPBGA-256

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFE2-6E-5FN256C information

LATTICE LFE2-6E-5FN256C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFE2-6E-5FN256C.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Package Description
FPBGA-256

Pin Count
256

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
311 MHz

Combinatorial Delay of a CLB-Max
0.358 ns

JESD-30 Code
S-PBGA-B256

JESD-609 Code
e1

Length
17 mm

Moisture Sensitivity Level
3

Number of CLBs
750

Number of Inputs
190

Number of Logic Cells
6000

Number of Outputs
190

Number of Terminals
256

Operating Temperature-Max
85 °C

Organization
750 CLBS

Package Code
BGA

Package Equivalence Code
BGA256,16X16,40

Package Shape
SQUARE

Package Style
GRID ARRAY

Peak Reflow Temperature (Cel)
250

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
2.1 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
TIN SILVER COPPER

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
40

Width
17 mm

Download datasheets and manufacturer documentation for LATTICE LFE2-6E-5FN256C.

Datasheets:

LATT-S-A0013315239-1.pdf

LFE2-6E-5FN256C Overview

This package is included in the 256-BGA package and is available for purchase. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. The I/Os are designed to facilitate a more coherent transfer of data. Logic elements/cells form the fundamental building block of a computer. 1.2V volts power it. The Field Programmable Gate Arrays family of FPGAs includes this part. Using a Surface Mount connector, you can mount this FPGA module on the development board. In order for it to operate, the supply voltage must be 1.14V~1.26V . An FPGA belonging to the ECP2 series is referred to as an FPGA. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. With this device, you will be able to make use of 190 outputs. Using the Tray layout, this FPGA model can be contained in a very small amount of space. The total number of terminations is 256. This device is equipped with 56320 RAM bits in terms of its RAM si56320e. Parts related to this part can be found using its base part number LFE2-6. During the configuration of this FPGA module, the RAM si6.9kBe reaches 6.9kB to ensure that the program runs normally. The device is designed with 256 pins in total. An array of 750 LABs/CLBs is built into the FPGA. Fpga electronics is possible for this FPGA to perform as per fpga electronics s specifications as long as fpga electronics is mounted in Surface Mount direction. In the case of 1.2V supply voltage, designers can take full advantage of its flexibility. The device has a total of 256 pins on fpga semiconductor. A crystal oscillating at 311MHz is one of the most common components of this device. Data and programs can be stored in this FPGA module's memory of 8.4kB.

LFE2-6E-5FN256C Features

190 I/Os
Up to 56320 RAM bits
256 LABs/CLBs

LFE2-6E-5FN256C Applications

There are a lot of Lattice Semiconductor Corporation
LFE2-6E-5FN256C FPGAs applications.

ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
