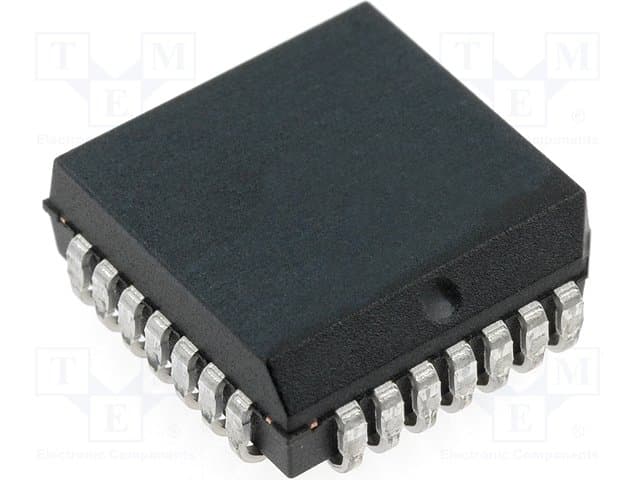

LATTICE GAL22V10D-5LJN
Manufacturer No:
GAL22V10D-5LJN
Manufacturer:
Package:
28-LCC (J-Lead)
Description:
5V 1.27mm PMIC GAL®22V10 Series GAL22V10 28 Pin 200MHz 5V 28-LCC (J-Lead)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GAL22V10D-5LJN information
LATTICE GAL22V10D-5LJN technical specifications, attributes, parameters and parts with similar specifications to LATTICE GAL22V10D-5LJN.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 28-LCC (J-Lead)
- Number of Pins
- 28
- Number of I/Os
- 10
- Operating Temperature
- 0°C~75°C TA
- Packaging
- Tube
- Series
- GAL®22V10
- Published
- 1996
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 28
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- HTS Code
- 8542.39.00.01
- Terminal Position
- QUAD
- Terminal Form
- J BEND
- Peak Reflow Temperature (Cel)
- 245
- Supply Voltage
- 5V
- Terminal Pitch
- 1.27mm
- Frequency
- 200MHz
- Base Part Number
- GAL22V10
- Pin Count
- 28
- Number of Outputs
- 10
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Programmable Type
- EE PLD
- Max Supply Voltage
- 5.25V
- Min Supply Voltage
- 4.75V
- Nominal Supply Current
- 140mA
- Max Supply Current
- 140mA
- Propagation Delay
- 5 ns
- Turn On Delay Time
- 5 ns
- Architecture
- PAL-TYPE
- Output Function
- MACROCELL
- Number of Macro Cells
- 10
- Number of Dedicated Inputs
- 11
- Voltage Supply - Internal
- 4.75V~5.25V
- Number of Product Terms
- 132
- Length
- 11.5062mm
- Height Seated (Max)
- 4.572mm
- Width
- 11.5062mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
Download datasheets and manufacturer documentation for LATTICE GAL22V10D-5LJN.
Datasheets:
ConflictMineralStatement:
GAL22V10D-5LJN Overview
10 macrocells exist, which are cells in a mobile phone network that are primarily composed of high-power towers, antennas, or masts.A 28-LCC (J-Lead) package contains the item.It is programmed that device terminations will be 28 .The terminal position of this electrical component is QUAD.A voltage of 5V is used as the power supply for this device.It is recommended to package the chip by Tube.During operation, the operating temperature is kept at 0°C~75°C TA to ensure its reliability.Mount the chip by Surface Mount.This type of FPGA is a part of the GAL®22V10 series.Chips are programmed with 28 pins.There are related parts in GAL22V10.If high efficiency is to be achieved, the supply voltage should be maintained at 5V.In this case, Surface Mount is used to mount the electronic component.The 28 pins are designed into the board.A voltage of 5.25V is the maximum supply voltage for this device.A minimum supply voltage of 4.75V is required for this device to operate.It runs on 5V volts of power.There is a maximum frequency of 200MHz.To detect input signals, there are 11 dedicated inputs.This device has 10outputs configured.This product has a total of 132 terms associated with it.As a result, its operating current reaches 140mA.
GAL22V10D-5LJN Features
28-LCC (J-Lead) package
The operating temperature of 0°C~75°C TA
28 pin count
28 pins
5V power supplies
10 outputs
GAL22V10D-5LJN Applications
There are a lot of Lattice Semiconductor Corporation
GAL22V10D-5LJN CPLDs applications.
- Address decoders
- Custom state machines
- Digital systems
- Portable digital devices
- Handheld digital devices
- Battery operated portable devices
- Complex programmable logic devices
- Digital designs
- Field programmable gate
- Address decoding
