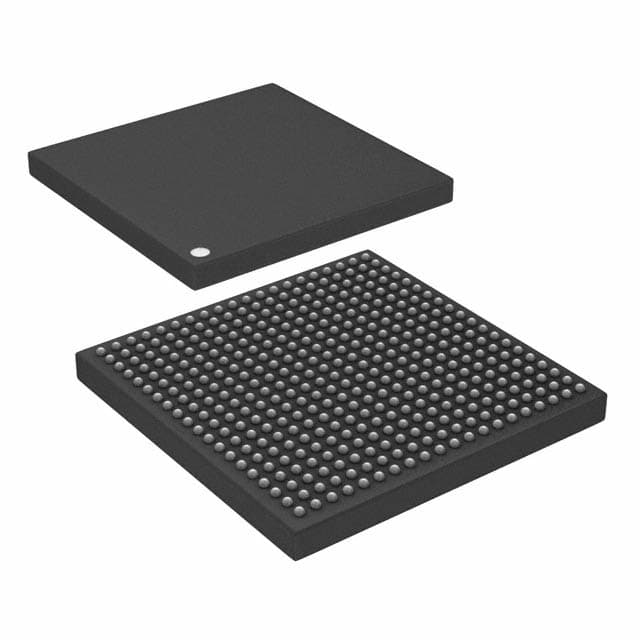

LATTICE LCMXO3LF-6900C-6BG400C

Manufacturer No:

LCMXO3LF-6900C-6BG400C

Manufacturer:

LATTICE

Package:

400-LFBGA

Description:

Field Programmable Gate Array, PBGA400, CABGA-400

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO3LF-6900C-6BG400C information

LATTICE LCMXO3LF-6900C-6BG400C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO3LF-6900C-6BG400C.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Reach Compliance Code
compliant

ECCN Code
3A991.D

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Additional Feature
ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

JESD-30 Code
S-PBGA-B400

JESD-609 Code
e1

Length
17 mm

Moisture Sensitivity Level
3

Number of CLBs
858

Number of Terminals
400

Operating Temperature-Max
85 °C

Organization
858 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
LFBGA

Package Equivalence Code
BGA400,20X20,32

Package Shape
SQUARE

Package Style
GRID ARRAY, LOW PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
260

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Seated Height-Max
1.7 mm

Supply Voltage-Min
2.375 V

Supply Voltage-Nom
2.5 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
TIN SILVER COPPER

Terminal Form
BALL

Terminal Pitch
0.8 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Width
17 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO3LF-6900C-6BG400C.

Datasheets:

LATT-S-A0019484813-1.pdf

LCMXO3LF-6900C-6BG400C Overview

There is a 400-LFBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 335 I/Os are available for transferring data more efficiently. A fundamental building block consists of 6864 logic elements/cells. It is powered from a supply voltage of 2.5V. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 2.375V~3.465V is needed in order for fpga chips to operate. As part of the MachXO3 series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~85°C TJ. As a space-saving measure, this FPGA model is contained within Tray. Total terminations are 400. There are 245760 RAM bits that are available with this device. There is a maximum RAM si30kBe of 30kB on this FPGA module, which is necessary to ensure the normal operation of the program. It has a total of 400 pins that are designed for it. 858 LABs and CLBs are built into this FPGA. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. There are 858 CLBs that make up the architecture of the system. Additionally, this feature is also known as ALSO OPERATES AT 3.3 V NOMINAL SUPPLY, which is one of its main characteristics.

LCMXO3LF-6900C-6BG400C Features

335 I/Os
Up to 245760 RAM bits
400 LABs/CLBs

LCMXO3LF-6900C-6BG400C Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO3LF-6900C-6BG400C FPGAs applications.

Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
