LATTICE LCMXO2-2000ZE-1UWG49ITR1K

Manufacturer No:

LCMXO2-2000ZE-1UWG49ITR1K

Manufacturer:

LATTICE

Package:

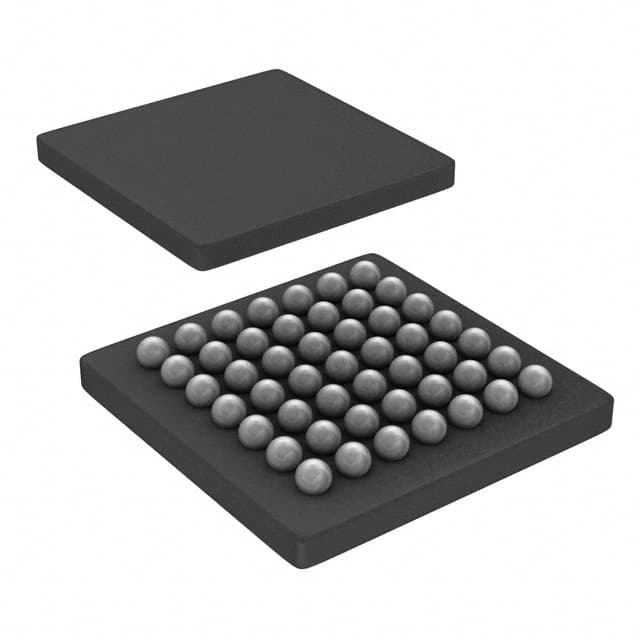

WLCSP-49

Description:

Description: IC FPGA 40 I/O 49WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO2-2000ZE-1UWG49ITR1K information

LATTICE LCMXO2-2000ZE-1UWG49ITR1K technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO2-2000ZE-1UWG49ITR1K.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
WLCSP-49

Reach Compliance Code
compliant

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
86.6 MHz

JESD-30 Code
R-PBGA-B49

Length
3.185 mm

Number of CLBs
264

Number of Inputs
38

Number of Logic Cells
2112

Number of Outputs
38

Number of Terminals
49

Operating Temperature-Max
100 °C

Operating Temperature-Min
-40 °C

Organization
264 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Equivalence Code
BGA49,7X7,16

Package Shape
RECTANGULAR

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Packing Method
TR

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Seated Height-Max
0.6 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
3.106 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO2-2000ZE-1UWG49ITR1K.

Datasheets:

LATT-S-A0019494880-1.pdf

LCMXO2-2000ZE-1UWG49ITR1K Overview

In the 49-UFBGA, WLCSP package, you will find fpga chips. The device has 40 I/O ports for more coherent data transfer. To form a fundamental building block, there are 2112 logic elements/cells. Surface Mount-connectors can be used to attach this FPGA module to the development board. There is a 1.14V~1.26V-volt supply voltage required for the device to operate. The MachXO2 Series is one of the types of FPGAs that belong to this type. As far as the operating temperature is concerned, it should be kept within -40°C~100°C when operating. Unlike other FPGA models, this one is contained in Tape & Reel (TR) for the sake of space saving. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 75776 bFpga chipss. It is crucial that the RAM si9.3kBe of this FPGA module reaches 9.3kB so that the program can run normally. A total of 264 LABs/CLBs are included in this FPGA. In order for this FPGA to work properly in accordance with its specifications, it is necessary that it is mounted in Surface Mount. As a result of the design of this module, the maximum operating temperature reaches 100°C. There should be a temperature difference between -40°C and the operating temperature. A basic building block of this system consists of 264 logic blocks (LABs). Its supplier package is called 49-WLCSP (3.11x3.19).

LCMXO2-2000ZE-1UWG49ITR1K Features

40 I/Os
Up to 75776 RAM bits
100°C gates
264 logic blocks (LABs)

LCMXO2-2000ZE-1UWG49ITR1K Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO2-2000ZE-1UWG49ITR1K FPGAs applications.

Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
