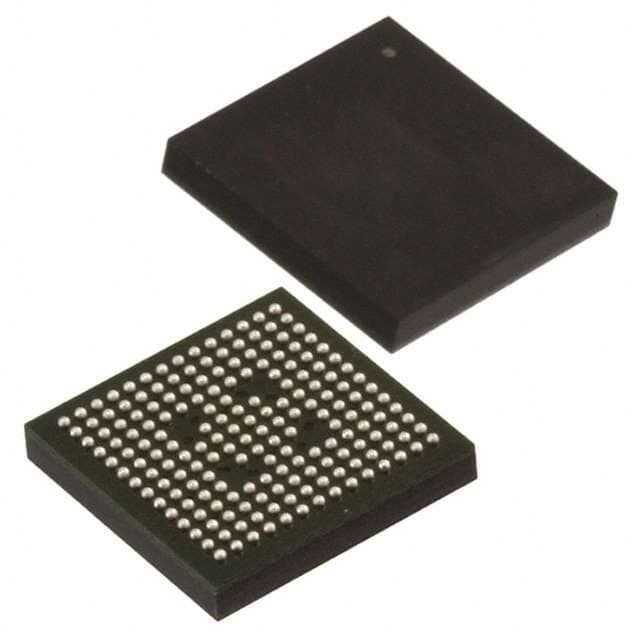

LATTICE LCMXO2-4000HE-6MG184C

Manufacturer No:

LCMXO2-4000HE-6MG184C

Manufacturer:

LATTICE

Package:

LFBGA, BGA184,14X14,20

Description:

Field Programmable Gate Array, 4320-Cell, CMOS, PBGA184, CSBGA-184

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO2-4000HE-6MG184C information

LATTICE LCMXO2-4000HE-6MG184C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO2-4000HE-6MG184C.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Package Description
LFBGA, BGA184,14X14,20

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
129.1 MHz

JESD-30 Code
S-PBGA-B184

JESD-609 Code
e1

Length
8 mm

Moisture Sensitivity Level
3

Number of Inputs
150

Number of Logic Cells
4320

Number of Outputs
150

Number of Terminals
184

Operating Temperature-Max
85 °C

Organization
540 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
LFBGA

Package Equivalence Code
BGA184,14X14,20

Package Shape
SQUARE

Package Style
GRID ARRAY, LOW PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
1.5 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Min
1.14 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
0.5 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
8 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO2-4000HE-6MG184C.

Datasheets:

LATT-S-A0019494880-1.pdf

LCMXO2-4000HE-6MG184C Overview

There is a 184-LFBGA, CSPBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 150 I/Os are available for transferring data more efficiently. A fundamental building block consists of 4320 logic elements/cells. It is powered from a supply voltage of 1.2V. Field Programmable Gate Arrays family FPGA part. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 1.14V~1.26V is needed in order for fpga chips to operate. As part of the MachXO2 series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~85°C TJ. The device has 150 outputs that are integrated into it. As a space-saving measure, this FPGA model is contained within Tray. Total terminations are 184. There are 94208 RAM bits that are available with this device. In order to find related parts, you can use its base part number LCMXO2-4000. 540 LABs and CLBs are built into this FPGA. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. Designers can fully utilize its flexibility with 1.2V supply voltage. Programs and data can be stored in the 27.8kB memory embedded in this FPGA module. There is a possibility that this FPGA will be able to reach a speed of 388MHz. A 124μA supply current is used for its operation. A CPLD is essentially composed of 2160 macrocells, which are the main building blocks of a CPLD.

LCMXO2-4000HE-6MG184C Features

150 I/Os
Up to 94208 RAM bits

LCMXO2-4000HE-6MG184C Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO2-4000HE-6MG184C FPGAs applications.

Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
