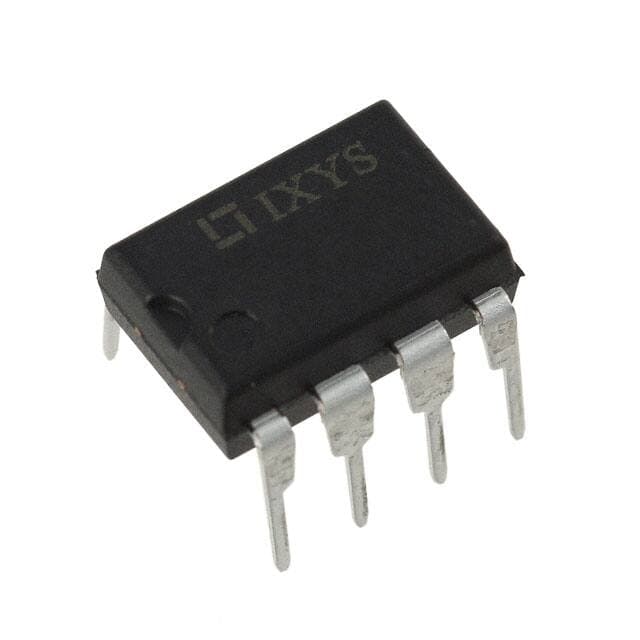

LITTELFUSE IXDN604PI

Manufacturer No:

IXDN604PI

Manufacturer:

LITTELFUSE

Package:

8-DIP (0.300, 7.62mm), 6 Leads

Description:

Through Hole Tube Active Gate Drivers ICs Non-Inverting 2 8-DIP (0.300, 7.62mm), 6 Leads Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXDN604PI information

LITTELFUSE IXDN604PI technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXDN604PI.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
8-DIP (0.300, 7.62mm), 6 Leads

Number of Pins
8

Supplier Device Package
8-DIP

Weight
2.26799g

Operating Temperature
-40°C~125°C TA

Packaging
Tube

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Voltage - Supply
4.5V~35V

Number of Outputs
2

Max Output Current
4A

Number of Channels
2

Max Supply Voltage
35V

Min Supply Voltage
4.5V

Operating Supply Current
10?A

Output Current
4A

Propagation Delay
40 ns

Input Type
Non-Inverting

Rise Time
16ns

Fall Time (Typ)
14 ns

Rise / Fall Time (Typ)
9ns 8ns

Channel Type
Independent

Number of Drivers
2

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)
4A 4A

Logic Voltage - VIL, VIH
0.8V 3V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITTELFUSE IXDN604PI.

IXDN604PI Overview

For greater flexibility, the 8-DIP (0.300, 7.62mm), 6 Leads package is adopted.A package of Tube has been used.This configuration includes 2 drivers.The device is mounted in the direction of Through Hole.A supply voltage of 4.5V~35V demonstrates its superiority.IGBT, N-Channel, P-Channel MOSFET is the gate type used for this design.Mosfet driver is possible to use this device at temperatures as low as -40°C~125°C TA.The input type is Non-Inverting.The device is mounted using Through Hole.The pins are configured with 8 when designing the chip.4A is the maximum output current.Based on its basis, it integrates 2 outputs.An output current of 4A is supported.Mosfet gate drivers is permissible to operate at a temperature of 125°C.Operating temperatures can be as low as -40°C.For operation, 35V is the maximum supply voltage.For operation, 4.5V is the minimum supply voltage.The supply voltage is 10?A.For operation, mosfet gate drivers has 2 channels.

IXDN604PI Features

Embedded in the Tube package
2 drivers
Employing a gate type of IGBT, N-Channel, P-Channel MOSFET
8 pins

IXDN604PI Applications

There are a lot of IXYS Integrated Circuits Division
IXDN604PI gate drivers applications.

PCMCIA applications
A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
