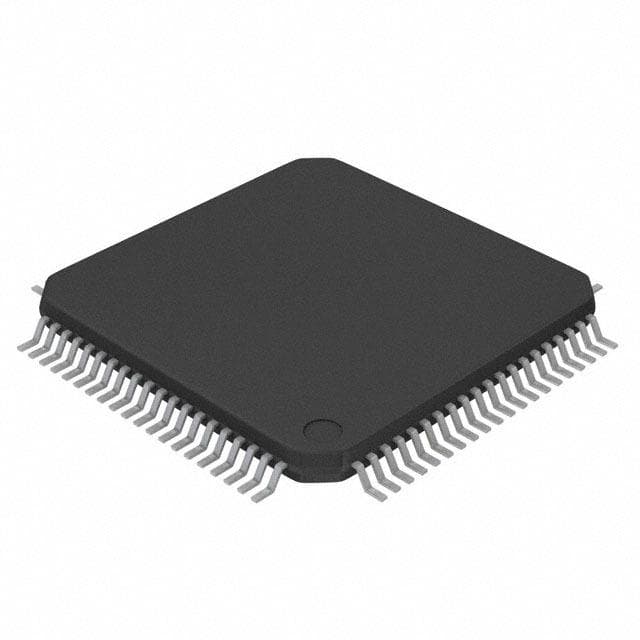

Renesas 709149S8PF8

Manufacturer No:

709149S8PF8

Manufacturer:

Renesas

Package:

TQFP

Description:

5V V Surface Mount 80 Pin Memory IC 36 kb kb 14mm mm 320mA mA 9b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

709149S8PF8 information

Renesas 709149S8PF8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 709149S8PF8.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
80

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
80

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
SELF-TIMED WRITE

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
62.5MHz

Pin Count
80

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
4.5kB

Number of Ports
2

Nominal Supply Current
320mA

Memory Type
RAM, SDR, SRAM

Access Time
8 ns

Organization
4KX9

Output Characteristics
3-STATE

Address Bus Width
24b

Density
36 kb

Standby Current-Max
0.015A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
9b

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

Download datasheets and manufacturer documentation for Renesas 709149S8PF8.

Datasheets:

integrateddevicetechnology-709149s8pf8-datasheets-7818.pdf

709149S8PF8 Overview

Its memory type can be classified as RAM, SDR, SRAM. It is available in TQFP case. The memory size of the chip is 4.5kB Mb. 80 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 5V. This memory device is enclosed in a 80-pin package. This memory device has 80 pins, indicating it has 80 memory locations. The operating supply voltage of this memory chip is noted to be 5V. This chip is configured to use Surface Mount mounting, a straight forward, high-efficiency mounting fashion. This memory chip is rated 320mA for its nominal supply current. In spite of all the merits this chip has, it also features SELF-TIMED WRITE to level up system performance. There are 2 ports used in this chip to give read and/or write access to one memory address. Talking about power supplies, this memory chip requires merely 5V. This device has COMMON-bit memory mapped I/O port addresses. The minimum operating temperature of this device must not be less than 0°C. It is recommended for operation at temperatures no higher than. Usually, this memory ics is regarded as a type of SRAMs. The minimum supply voltage for this part should not be less than 4.5V. Its operating voltage shall not exceed 5.5V. This memory chip processes data at a frequency of 62.5MHz.

709149S8PF8 Features

Package / Case: TQFP
80 Pins
Operating Supply Voltage:5V
Additional Feature:SELF-TIMED WRITE
I/O Type: COMMON
Freguency at 62.5MHz
62.5MHz terminals

709149S8PF8 Applications

There are a lot of Integrated Device Technology (IDT)
709149S8PF8 Memory applications.

Cache memory
cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
