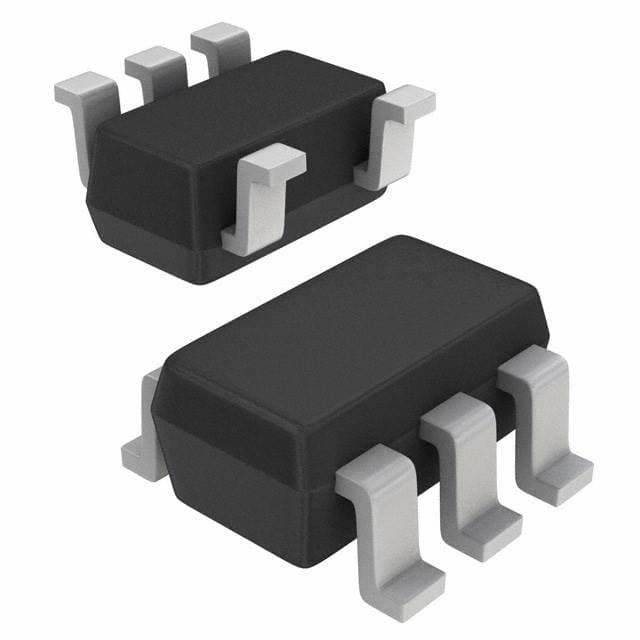

Renesas ISL84517IHZ-T

Manufacturer No:

ISL84517IHZ-T

Manufacturer:

Renesas

Package:

SOT-23-5

Description:

Analog Switches BREAK-BEFORE-MAKE 5 Pins 5V SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84517IHZ-T information

Renesas ISL84517IHZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84517IHZ-T.

Type
Parameter

Factory Lead Time
5 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOT-23-5

Number of Pins
5

Packaging
Tape & Reel

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
5

Resistance
20Ohm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
5

Operating Supply Voltage
5V

Polarity
Non-Inverting

Number of Channels
1

Max Supply Voltage
6V

Operating Supply Current
40?A

Nominal Supply Current
40?A

Max Supply Current
125?A

Number of Bits
1

Throw Configuration
SPST

Turn On Delay Time
100 ns

Supply Type
Dual

Bandwidth
400MHz

Neg Supply Voltage-Nom (Vsup)
-5V

Turn-Off Delay Time
75 ns

Max Dual Supply Voltage
6V

Min Dual Supply Voltage
1.5V

High Level Output Current
20mA

Dual Supply Voltage
5V

Switching
BREAK-BEFORE-MAKE

Normal Position
NC

Length
2.9mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL84517IHZ-T.

Datasheets:

intersil-isl84517ihzt-datasheets-4741.pdf

ISL84517IHZ-T Overview

Due to its SOT-23-5 packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel. A total of 5 terminations have been recorded. The electronic part delivers high-quality output through its 1 channels. Turning on and running the electrical part should be easy with a 5V voltage supply. Electronic part bodies are injected with 5 pins. Internally, this switch multiplexer has a resistance of 20Ohm. You can find the functions of the 5 pins in the datasheets. A analogue multiplexer of this type is a Multiplexer or Switches. It is normally recommended that users do not supply the multiplexer with voltages higher than 6V. Digital switch that provides Dual power at a cost-effective price. The switch device would be able to operate with 40?A current. It may damage the digital multiplexer if the voltage is higher than 125?A. It is possible to supply this switch device with dual voltages. However, it is not advisable to exceed 6V. If you are using a dual power supply, you should attach at least 1.5V. It can operate from 5V operating voltages. 400MHz bandwidths enable data to be transferred. Temperatures over 85°C should not be allowed for the multiplexer to operate. Its conductivity is 1-bit.

ISL84517IHZ-T Features

1 Channels
40?A Supply Current
Bandwidth: 400MHz
1-Bit

ISL84517IHZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84517IHZ-T Analog Switches & Multiplexers ICs applications.

Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
