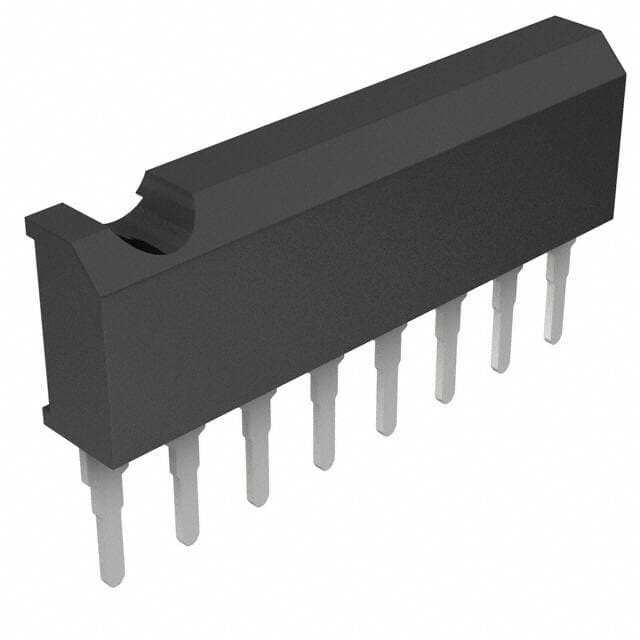

ROHM BA4558N

Manufacturer No:

BA4558N

Manufacturer:

ROHM

Package:

8-SIP

Description:

10mA per Channel 60nA 70 dB Instrumentational OP Amps 0.5?A 15V 8V~30V ±4V~15V BA4558 8 Pins 8-SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA4558N information

ROHM BA4558N technical specifications, attributes, parameters and parts with similar specifications to ROHM BA4558N.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
8-SIP

Number of Pins
8

Operating Temperature
-40°C~85°C

Packaging
Tube

Published
1999

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Copper (Sn/Cu)

Subcategory
Operational Amplifier

Max Power Dissipation
900mW

Technology
BIPOLAR

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
10

Base Part Number
BA4558

Operating Supply Voltage
15V

Number of Circuits
2

Operating Supply Current
3mA

Nominal Supply Current
6.5mA

Slew Rate
1.2V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
General Purpose

Common Mode Rejection Ratio
70 dB

Current - Input Bias
60nA

Voltage - Supply, Single/Dual (±)
8V~30V ±4V~15V

Output Current per Channel
10mA

Input Offset Voltage (Vos)
500?V

Gain Bandwidth Product
2MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Voltage Gain
100dB

Average Bias Current-Max (IIB)
0.5?A

Low-Offset
NO

Frequency Compensation
YES

Bias Current-Max (IIB) @25C
0.5?A

Length
19.3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA4558N.

Datasheets:

rohmsemiconductor-ba4558-datasheets-7253.pdf

rohm-ba4558n-datasheets-0434.pdf

BA4558N Overview

In the package, you will find a 8-SIP-case to contain the op amp ic. The instrumentation amplifier in this picture is of the General Purpose-type. A Tube case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are located on this board. This linear amplifier should be powered by an 15V battery. This particular linear amplifier is a type of Operational Amplifier device, to be precise. The op amp ic has an array of 8 pins on it. Op amp rates 500?V as input offset voltage. For this electrical component, Through Hole is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. Using an 3mA supply current, this operational amplifier ics can be operated. You should keep the voltage gain at 100dB for the time being. A instrumentation amplifier like this has 2 circuits. The operating supply voltage of the buffer op amp is rated at 15V.

BA4558N Features

8 Pins
supply voltage of 15V
100dB voltage gain

BA4558N Applications

There are a lot of ROHM Semiconductor
BA4558N Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
