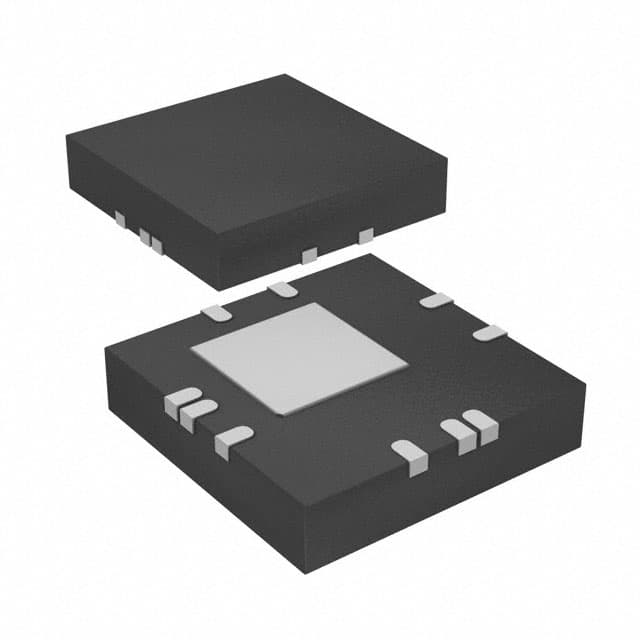

INFINEON IRS2005MTRPBF
Manufacturer No:
IRS2005MTRPBF
Manufacturer:
Package:
14-VFQFN Exposed Pad
Description:
Surface Mount Tape & Reel (TR) Active EAR99 Gate Drivers ICs Non-Inverting 2 200V V 14-VFQFN Exposed Pad Half-Bridge
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
IRS2005MTRPBF Information
INFINEON IRS2005MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRS2005MTRPBF.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 14-VFQFN Exposed Pad
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 1996
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- ECCN Code
- EAR99
- Voltage - Supply
- 10V~20V
- Type
- Parameter
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Reach Compliance Code
- unknown
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Input Type
- Non-Inverting
- Rise / Fall Time (Typ)
- 70ns 30ns
- Channel Type
- Independent
- Number of Drivers
- 2
- Driven Configuration
- Half-Bridge
- Gate Type
- IGBT, N-Channel MOSFET
- Current - Peak Output (Source, Sink)
- 290mA 600mA
Download datasheets and manufacturer documentation for INFINEON IRS2005MTRPBF.
Datasheets:
Other Related Documents:
PCN Packaging:
ConflictMineralStatement:
IRS2005MTRPBF Description
The IRS2005 is an independent high and low side referenced output channel high voltage, high speed power MOSFET and IGBT driver. Ruggedized monolithic construction is made possible by proprietary HVIC and latch immune CMOS technology. The conventional CMOS or LSTTL output is compatible with the logic input down to 3.3V. A high pulse current buffer stage with minimal driver cross-conduction is a feature of the output drivers. A high side N-channel power MOSFET or IGBT that operates up to 200 V can be driven using the floating channel. In order to make using the HVIC in high frequency applications simpler, propagation delays are matched.
IRS2005MTRPBF Features
Gate drive supplies up to 20V per channel
Undervoltage lockout for VCC, VBS
3.3 V, 5V , 15V input logic compatible
Tolerant to negative transient voltage
Designed for use with bootstrap power supplies
Matched propagation delays
Output in phase with the Inputs
-40°C to 125°C operating range
RoHS compliant
IRS2005MTRPBF Applications
Appliance motor drives
Servo drives
Micro inverter drives
General purpose three phase inverters
