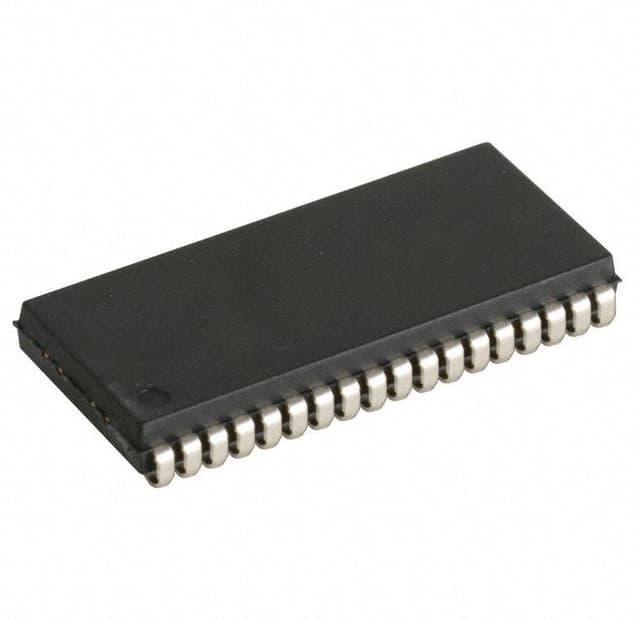

Renesas IDT71V424S10Y8

Manufacturer No:

IDT71V424S10Y8

Manufacturer:

Renesas

Package:

Description:

3.3V V 36 Pin Memory IC 23.495mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V424S10Y8 information

Renesas IDT71V424S10Y8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V424S10Y8.

Type
Parameter

Surface Mount
YES

Number of Pins
36

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

ECCN Code
3A991.B.2.A

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.32.00.41

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
36

Qualification Status
Not Qualified

Power Supplies
3.3V

Temperature Grade
COMMERCIAL

Supply Voltage-Min (Vsup)
3V

Interface
Parallel

Memory Type
RAM, SRAM - Asynchronous

Supply Current-Max
0.18mA

Organization
512KX8

Output Characteristics
3-STATE

Memory Width
8

Standby Current-Max
0.02A

Memory Density
4194304 bit

Access Time (Max)
10 ns

I/O Type
COMMON

Standby Voltage-Min
3V

Length
23.495mm

Height Seated (Max)
3.683mm

Width
10.16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V424S10Y8.

Datasheets:

integrateddevicetechnology-idt71v424s10y8-datasheets-4295.pdf

IDT71V424S10Y8 Overview

There is a memory type RAM, SRAM - Asynchronous for this type of device. The case comes in the Tape & Reel (TR) style. The chip contains 36 terminations. As many as 1 functions are supported for comprehensive working. An 3.3V supply is required for this ic memory chip to operate properly. A package of 36 pins is used to protect this memory device. The memory device has 36 pins, which means that it has 36 memory locations, which indicates it is an 36-bit device. The power supply needed for this memory chip is only 3.3V . An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. This device can be operated from a maximum supply current of 0.18mA under ideal conditions. The component is usually referred to as a type of SRAMs.

IDT71V424S10Y8 Features

36 Pins
I/O Type: COMMON

IDT71V424S10Y8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT71V424S10Y8 Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
