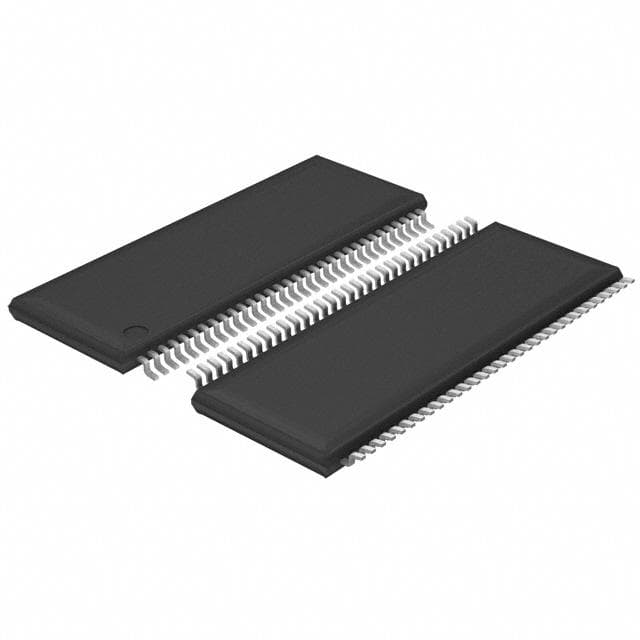

Renesas IDT74SSTVN16859PAG

Manufacturer No:

IDT74SSTVN16859PAG

Manufacturer:

Renesas

Package:

TFSOP

Description:

13 Bit 2.5V Specialty Logic IC 0.5mm 2.5V TFSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74SSTVN16859PAG information

Renesas IDT74SSTVN16859PAG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74SSTVN16859PAG.

Type
Parameter

Mount
Surface Mount

Package / Case
TFSOP

Published
2007

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
220 MHZ FOR PC3200 OPERATION

HTS Code
8542.39.00.01

Subcategory
Other Logic ICs

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
64

JESD-30 Code
R-PDSO-G64

Qualification Status
Not Qualified

Operating Supply Voltage
2.7V

Power Supplies
2.5V

Supply Voltage-Min (Vsup)
2.3V

Number of Bits
13

Family
SSTV

Logic Function
Buffer

Output Polarity
TRUE

Logic IC Type
D FLIP-FLOP

Trigger Type
POSITIVE EDGE

Propagation Delay (tpd)
2.7 ns

fmax-Min
200 MHz

Length
17mm

Height Seated (Max)
1.1mm

Width
6.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74SSTVN16859PAG.

IDT74SSTVN16859PAG Overview

There is a copy of it in the TFSOP package.In order for the device to perform properly, a voltage of 2.5V is supplied.Memory features a storage capacity of 13 bits.There are 64 pins on all component boards.64 terminations reduce the likelihood of signals reflecting off the end of a transmission line.Mounted in the Surface Mount way.Other Logic ICs can include it as a subcategory.In order for it to operate, an adequate supply voltage of 2.7V is required.Maintaining the power supplies of 2.5V ensures their convenient use.It provides high performance when it comes to 220 MHZ FOR PC3200 OPERATION.The electronic part belongs to the family of SSTV which is known for its high quality and reliability.Its operating temperature should not exceed 70°C at all times, as this is critical.This is the most essential factor, since its operating temperature cannot be lower than 0°C.It is based on the logic IC type D FLIP-FLOP.
