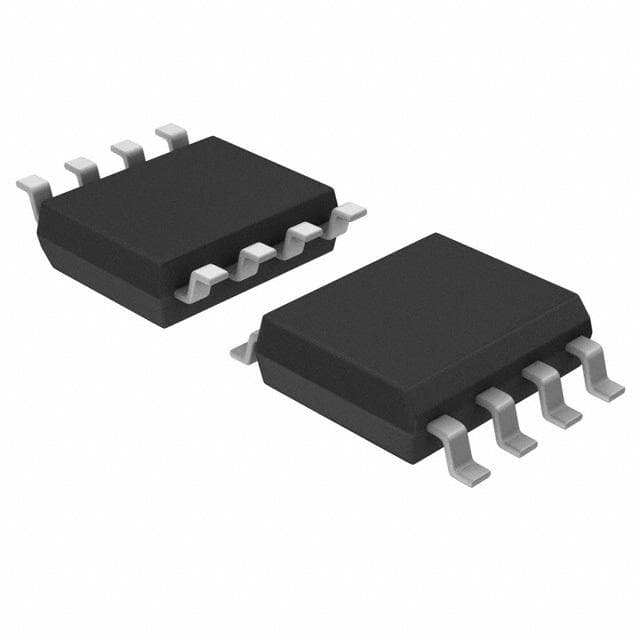

Renesas 1337GDCGI8

Manufacturer No:

1337GDCGI8

Manufacturer:

Renesas

Package:

SOIC

Description:

8 Terminations 3.3V 8 Pin Real Time Clocks Timer or RTC Subcategory 0.4MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1337GDCGI8 information

Renesas 1337GDCGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 1337GDCGI8.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Packaging
Tape & Reel

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Timer or RTC

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
5.5V

Temperature Grade
INDUSTRIAL

Interface
2-Wire, I2C, Serial

Number of Bits
8

Clock Frequency
0.4MHz

Logic Function
Clock

Number of Timers
1

Time Format
HH:MM:SS (12/24 hr)

Date Format
YY-MM-DD-dd

Time-Min
SECONDS

Interrupt Capability
Y

Information Access Method
I2C

Length
4.9mm

Height Seated (Max)
1.75mm

Width
3.9mm

Thickness
1.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 1337GDCGI8.

Datasheets:

integrateddevicetechnology-1337gdcgi8-datasheets-7906.pdf

1337GDCGI8 Overview

There is an embedded version of real time clocks in the package SOIC.This package has a package type of Tape & Reel.There are 8 terminations for transmission lines, which means that the RTC module that terminates the line matches its characteristic impedance.This RTC real time clock has a voltage supply of 3.3V which is provided to it.A total of 8 pins are attached to this RTCs.This component can be found in Timer or RTC.Ensure that the output frequency does not exceed 0.4MHz.In this case, the RTC module is mounted in the way of Surface Mount.As a power supply for the real time clock, a value of 2/5V is used.A total of 8 pins are equipped with the real time clock.Following an input signal, there are 1 timers that output a signal at a preset time.RTC time is essential that the supply voltage remain at 3.3V for maximum efficiency.Operating temperatures should be greater than -40°C.A temperature lower than 85°C should be used for operating.As soon as the maximum supply voltage (Vsup) of 5.5V is reached, the circuit is off.A 8 bit digital time clock has been designed.

1337GDCGI8 Features

SOIC package
8 terminations
8 pin count
2/5V power supplies
Be maintained at 3.3V for high efficiency.
8 Bits

1337GDCGI8 Applications

There are a lot of Integrated Device Technology (IDT)
1337GDCGI8 Real Time Clocks applications.

Printers
Copy machines
Mobile equipment
Battery powered devices
Printers and copiers
Electronic metering
Digital cameras
White goods
Elapsed time counter
Network powered devices
