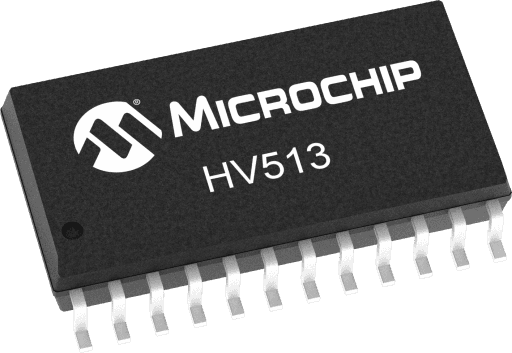

Microchip HV513K7-G

Manufacturer No:

HV513K7-G

Manufacturer:

Microchip

Package:

32-WFQFN Exposed Pad

Description:

HVCMOS , 8-CHANNEL, W/PUSH-PULL OUTPUTS, 250V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV513K7-G information

Microchip HV513K7-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV513K7-G.

Type
Parameter

Type
Source-Sink

Output Channels
8

Vout Operating (V) - Transient
275

Vout Operating (V) - Sustained
250

Iout (mA) per Channel
±20

Output Structure
Half-Bridge

Input Structure
Serial

Minimum Data Clock (MHz)
8

General Description
Serial to parallel converter with latches, polarity, and blanking HI-Z and short circuit detect

Package
24/SOIC 300mil 32/WQFN

Download datasheets and manufacturer documentation for Microchip HV513K7-G.

Application Notes:

1e55d92fe79a8e0fda16c8301df65941.pdf

5a3cacddcadb68671211b7859f3b8a43.pdf

Data Sheets:

b4b8659e2c36bfd472f3dc41dffea695.pdf

The HV513 is a low voltage serial to high voltage parallel converter with 8 high voltage push-pull outputs. This device has been designed to drive small capacitve loads such as piezoelectric transducers. It can also be used in any application requiring multiple high voltage outputs, with medium current source and sink capabilities. The device consists of an 8-bit shift register, 8 latches, and control logic to perform the polarity select and blanking of the outputs. Data is shifted through the shift register on the low to high transition of the clock. A data output buffer is provided for cascading devices. Operation of the shift register is not affected by the LE, BL, POL, or the HI-Z control inputs. Transfer of data from the shift register to the latch occurs when the LE is high. The data in the latch is stored when LE is low. A high-Z (HI-Z) pin is provided to set all the outputs in a high-Z state. All outputs have short circuit protection that detects if the outputs have reached the required output state. If output does not track the required state, then the SHORT pin will be low. This output will pulse low during the output transistion period under normal operation; see SC Timing Diagram for details. All outputs will have a break-before-make circuitry to reduce cross-over current during output state changes. The POL, BL, LE, and HI-Z inputs have an internal pull up resistor.

HVCMOS® technology
Operating output voltage of 250V
Low power level shifting from 5.0 to 250V
Shift register speed 8.0MHz @ VDD = 5.0V
8 latch data outputs
Output polarity and blanking
Output short circuit detect
Output high-Z control
CMOS compatible inputs
