Microchip ZL40201LDG1
Microchip ZL40201LDG1

Microchip ZL40201LDG1

Manufacturer No:

ZL40201LDG1

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad

Description:

2.5/3.3V Low Jitter 1:2 LVPECL Fanout Buffer

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL40201LDG1 information

Microchip ZL40201LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL40201LDG1.

  • Type
  • Parameter
  • Description
  • 1:2
  • Input
  • LVPECL, LVDS, HCSL, CML
  • Output
  • LVPECL
  • Supply Voltage
  • 2.5/3.3
  • Max Freq (GHz)
  • 0.75
  • Icc (mA)
  • 88
  • Max Within Device Skew (ps)
  • 100
  • OE
  • False
  • Input Mux
  • False
  • Number Of Outputs
  • 2
  • Buffer Type
  • Fanout
  • Fanout
  • 1:2
  • Max Prop Delay (ps)
  • 2000

Download datasheets and manufacturer documentation for Microchip ZL40201LDG1.

Data Sheets:

Application Notes:

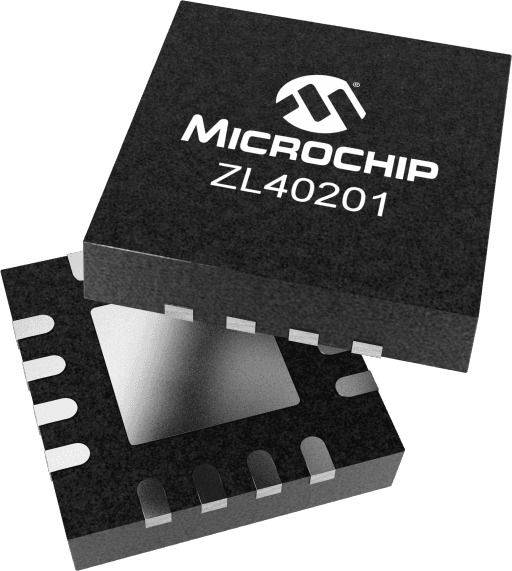

The ZL40201 is an LVPECL clock fan out buffer with two identical output clock drivers capable of operating at frequencies up to 750MHz.


The ZL40201 provides an internal input termination network for DC and AC coupled inputs; optional input biasing for AC coupled inputs is also provided. The ZL40201 can accept DC or AC coupled LVPECL and LVDS input signals, AC coupled CML or HCSL input signals, and single ended signals. A pin compatible device with external termination is also available.


The ZL40201 is designed to fan out low-jitter reference clocks for wired or optical communications applications while adding minimal jitter to the clock signal. An internal linear power supply regulator and bulk capacitors minimize additive jitter due to power supply noise. The device operates from 2.5V+/-5% or 3.3V+/-5% supply. Its operation is guaranteed over the industrial temperature range -40°C to +85°C.



  • Ultra low additive jitter of 40 fs
  • Accepts differential or single-ended input: LVPECL, LVDS, CML, HCSL, LVCMOS
  • On-chip input termination resistors and biasing for AC coupled inputs
  • Two precision LVPECL outputs. Operating frequency up to 750 MHz
  • Option for 2.5 V or 3.3 V power supply with core current consumption of 49 mA
  • On-chip Low Drop Out (LDO) Regulator for superior power supply rejection

User Guide
