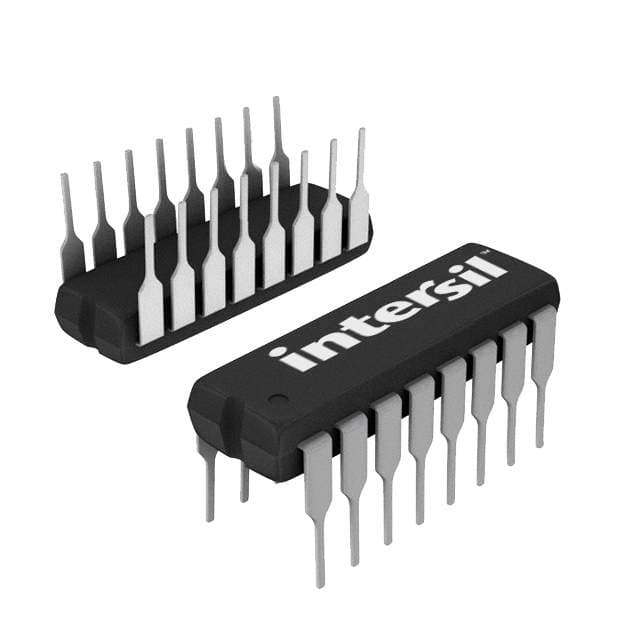

Renesas HI1-0201-4

Manufacturer No:

HI1-0201-4

Manufacturer:

Renesas

Package:

CDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 15V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-0201-4 information

Renesas HI1-0201-4 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-0201-4.

Type
Parameter

Mount
Through Hole

Package / Case
CDIP

Packaging
Bulk

Published
1999

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
16

Resistance
80Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
4

Supply Voltage
15V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
16

JESD-30 Code
R-GDIP-T16

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
OTHER

Operating Supply Current
500?A

Number of Bits
4

Throw Configuration
SPST

Supply Type
Dual

Neg Supply Voltage-Nom (Vsup)
-15V

Off-state Isolation-Nom
80 dB

Switching
BREAK-BEFORE-MAKE

Drain to Source Resistance
55Ohm

Normal Position
NC

Height Seated (Max)
5.08mm

Width
7.62mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI1-0201-4.

Datasheets:

intersil-hi102014-datasheets-1503.pdf

HI1-0201-4 Overview

This electronic part is conveniently packaged in CDIP, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Bulk. In total, there have been 16 terminations. A 1 channel electronic part produces high-quality output. A 15V voltage supply should turn on and run the electronic component. An injection of 16 pins is performed into the body of the electrical component. Analog switches have 80Ohm internal resistance. It is a typical Multiplexer or Switches analog multiplexer. Analog switch ics with Dual supply type are cost-effective. It would be sufficient to run this analogue multiplexer with 500?A current. The outputs of this digital multiplexer are SEPARATE OUTPUT in number. Temperatures higher than 85°C are not recommended for operation of the analogue multiplexer. Resistivity from Drain to Source is 55Ohm for this electronic part. It can conduct 4-bit signals.

HI1-0201-4 Features

1 Channels
500?A Supply Current
Drain-to-Source resistance: 55Ohm
4-Bit

HI1-0201-4 Applications

There are a lot of Intersil (Renesas Electronics America)
HI1-0201-4 Analog Switches & Multiplexers ICs applications.

Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
