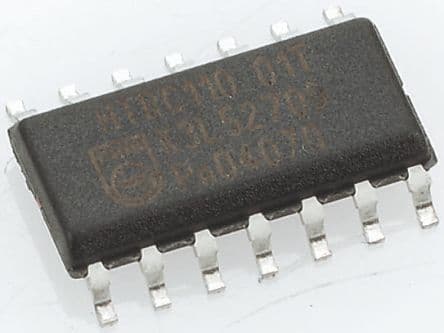

NEXPERIA HEF4520BT

Manufacturer No:

HEF4520BT

Manufacturer:

NEXPERIA

Package:

SOP-16

Description:

Binary Counter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HEF4520BT information

NEXPERIA HEF4520BT technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA HEF4520BT.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
NEXPERIA

Package Description
SOP-16

Reach Compliance Code
compliant

HTS Code
8542.39.00.01

Date Of Intro
1985-01-15

Samacsys Manufacturer
Nexperia

Additional Feature
GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT

Count Direction
UP

Family
4000/14000/40000

JESD-30 Code
R-PDSO-G16

JESD-609 Code
e4

Length
9.9 mm

Load/Preset Input
NO

Logic IC Type
BINARY COUNTER

Mode of Operation
SYNCHRONOUS

Moisture Sensitivity Level
1

Number of Bits
4

Number of Functions
2

Number of Terminals
16

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Propagation Delay (tpd)
220 ns

Seated Height-Max
1.75 mm

Supply Voltage-Max (Vsup)
15 V

Supply Voltage-Min (Vsup)
3 V

Supply Voltage-Nom (Vsup)
5 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
GULL WING

Terminal Pitch
1.27 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
30

Trigger Type
POSITIVE EDGE

Width
3.9 mm

fmax-Min
20 MHz

Download datasheets and manufacturer documentation for NEXPERIA HEF4520BT.

Datasheets:

NEXP-S-A0014663325-1.pdf

HEF4520BT Overview

The device is packaged in the SOICtype. This configuration uses 16terminations. By supplying 5Vwith a voltage of 5V , the device can be operated in a completely flexible manner. An interconnection of 2elements is provided by wires. As part of the circuit, there are 16pins that connect other components. The Surface Mountway is used to mount it. In this case, it belongs to the family of [0]. As far as the device is concerned, there are 4bits of information. It is important to note that GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUTare really important features of this electronic device. In this device, the temperature grade is INDUSTRIAL. The electrical properties of the device remain stable at a maximum temperature of [0]. Generally, it is designed to operate over a range of temperatures with a lower temperature limit at -40°C. The frequency of the system is 40MHz. A maximum voltage of 15.5Vcan be reached by the device. Devices are capable of operating at a minimum voltage of 4.5V.

HEF4520BT Features

Embedded in the SOIC package
GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT
Frequency of 40MHz

HEF4520BT Applications

There are a lot of Nexperia
HEF4520BT Counters & Dividers applications.

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating
Frequency dividing circuits
Time delay circuits
Communications Digital Frequency Synthesizers;
VHF, UHF, FM, AM, etc.
Fixed or Programmable Frequency Division
Time Out Timer for Consumer-Application Industrial Controls
Timing applications
