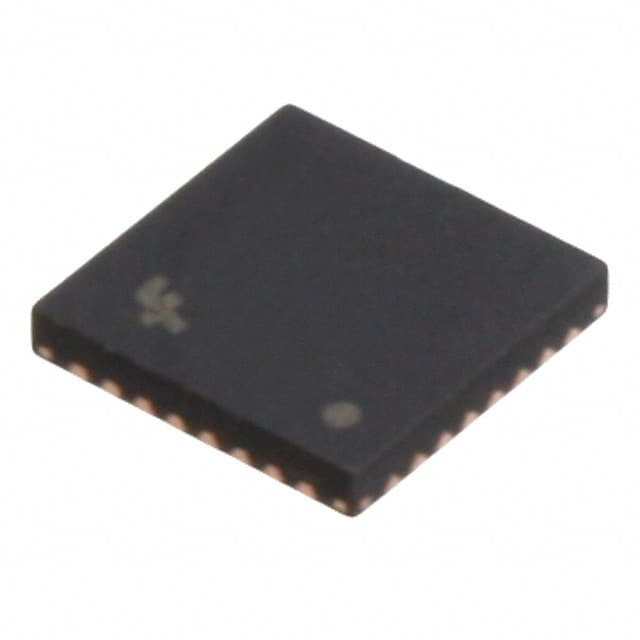

ONSEMI FUSB2805MLX
Manufacturer No:
FUSB2805MLX
Manufacturer:
Package:
32-WFQFN Exposed Pad
Description:
USB 2.0 High-Speed OTG Transceiver with ULPI Interface
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
FUSB2805MLX Information
ONSEMI FUSB2805MLX technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FUSB2805MLX.
- Type
- Parameter
- Case Outline
- 510BV
- Container Qty.
- 3000
- Data Transmission Standard
- HS-USB
- Data Rate
- 1 Gb/s
- Number of Drivers
- 1
- Number of Receivers
- 1
- Package Type
- WQFN-32
- Container Type
- REEL
- VCC Min (V)
- 2.7
- tPLH Max (µs)
- 0.02
- Type
- Parameter
- IO Max (µA)
- 200
- IIH Max (mA)
- 30
- MSL Type
- 1
- MSL Temp (°C)
- 260
- VCC Max (V)
- 4.5
Download datasheets and manufacturer documentation for ONSEMI FUSB2805MLX.
Datasheet:
Package Drawing:
The FUSB2805 is a UTMI+ Low-Pin Interface (ULPI) USB2.0 OTG transceiver. It is compliant with the Universal Serial Bus Specification Rev 2.0 (USB2.0), the ULPI Specification Rev. 1.1, and the On-The-Go (OTG)Supplement to USB2.0, Rev. 1.3. The FUSB2805 is optimized to connect the USB2.0 host, peripheral, or OTG-controller to the USB connector via the ULPI link. Data can be transmitted and received at high speed (480Mbps), full speed (12Mbps), and low speed (1.5Mbps) through a 12-bit (SDR) interface.
Application
- Mobile
- Consumer
End Product
- Media Tablets
- Mobile Handsets
- PMP/MP3 Players
Feature
- Complies with USB 2.0 OTG Rev 1.3 Supplement and ULPI Rev 1.1 Specifications
- Supports 480Mbps, 12Mbps, and 1.5Mbps USB2.0 Speeds
- Integrated Termination Resistors Meet USB2.0 Resistor ECN
- Integrated Serializer and Deserializer
- Insertion and Removal of Stuffed Bits as Appropriate
- USB Clock and Data Recovery to ±150ppm
- Supports USB OTG Rev 1.3 Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)
