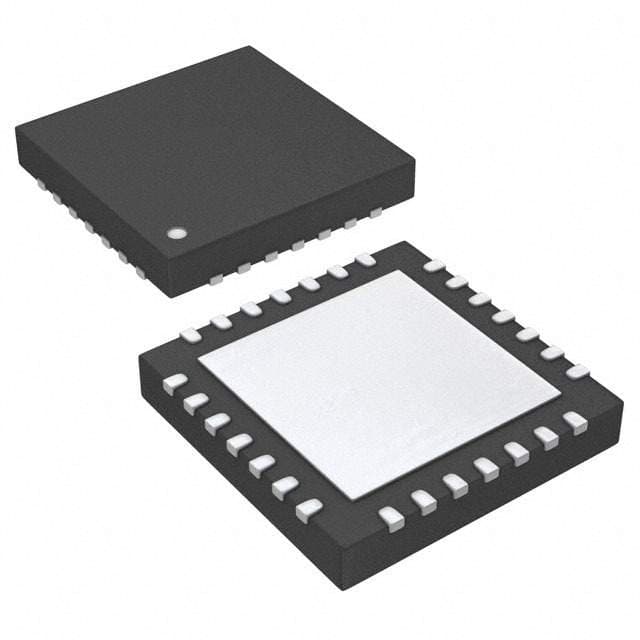

Renesas ISL6537CR-T

Manufacturer No:

ISL6537CR-T

Manufacturer:

Renesas

Package:

VQFN

Description:

28 Terminations Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6537CR-T information

Renesas ISL6537CR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6537CR-T.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
S-PQCC-N28

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Analog IC - Other Type
SWITCHING CONTROLLER

Operating Supply Current
7mA

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Output Current-Max
3.3A

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Switching Frequency-Max
280kHz

Length
6mm

Height Seated (Max)
1mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6537CR-T.

Datasheets:

intersil-isl6537crt-datasheets-8739.pdf

ISL6537CR-T Overview

Tape & Reel (TR) is acceptable as a shipping the power management method.The package is conveniently packaged the power management in VQFN .On the power management, you can find 28 terminals.As an analog IC with a SWITCHING CONTROLLER value, the instruments designs has been widely praised.The board has a Surface Mount for mounting on PCBs or other boards.This power ic has 28 pins starting from the pinout.The power management ic operates at a voltage of 7mA volts.It belongs to the Switching Regulator or Controllers series.Keeping the temperature below 70°C is not recommended.It cannot be operated at a temperature lower than 0°C .

ISL6537CR-T Features

SWITCHING CONTROLLER analog IC

ISL6537CR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6537CR-TPower Management applications.

Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
Chromebook
WOA
Docking station
Port/cable adapters
