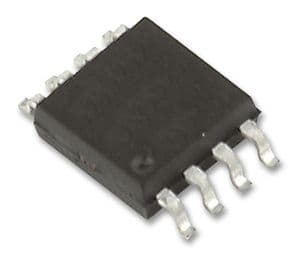

Renesas ISL6146CFUZ

Manufacturer No:

ISL6146CFUZ

Manufacturer:

Renesas

Package:

MSOP

Description:

0.65mm PMIC 12V MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6146CFUZ information

Renesas ISL6146CFUZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6146CFUZ.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Package / Case
MSOP

Published
2011

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8, 8

JESD-30 Code
S-PDSO-G8

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
20V

Operating Supply Current
25?A

Nominal Supply Current
4.5mA

Turn-Off Delay Time
65 ns

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

High Side Driver
NO

Length
3mm

Height Seated (Max)
1.1mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL6146CFUZ.

Datasheets:

intersil-isl6146cfuz-datasheets-9647.pdf

ISL6146CFUZ Overview

The case that it comes in is called MSOP case. In the part there are 8 terminations that are available. As you can see, it is designed with 8, 8 pins. This device is powered by 12V in order to deliver a high level of performance. In order to run 260, a part's peak reflow temperature is utilized. It uses a current of 25?A for powering its operation. In order to achieve the best results, it is recommended that this part be mounted by the Surface Mount axis. In order to use the part, the temperature should be above -40°C. The part should be heated to temperatures below 125°C. An IC with BUFFER OR INVERTER BASED MOSFET DRIVER interface can be classified in a number of ways.

ISL6146CFUZ Features

in a MSOP case
8 terminations
Peak Reflow Temperature (Cel) : 260

ISL6146CFUZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6146CFUZ Ideal Diode controller applications.

Automotive battery protection
ADAS domain controller
Camera ECU
Head Unit
USB HUBs
Active ORing for redundant power
Factory automation and control - PLC digital output modules
Industrial motor drives
Industrial transport
Power supply reverse polarity protection
