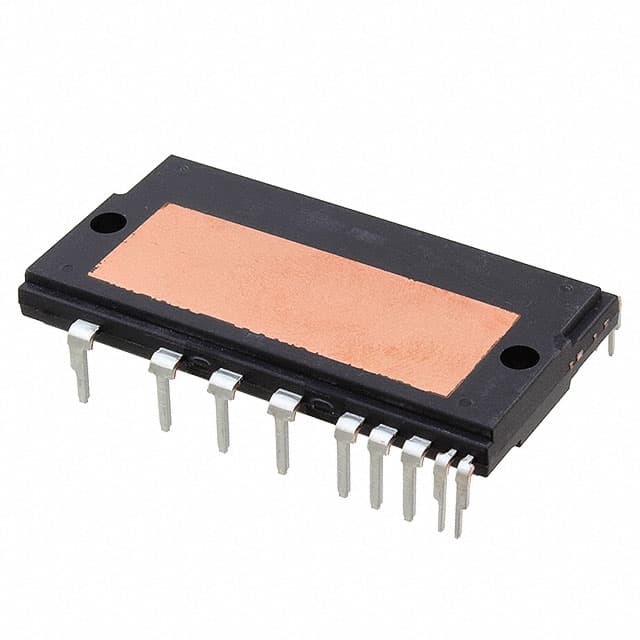

ONSEMI FSAM50SM60A

Manufacturer No:

FSAM50SM60A

Manufacturer:

ONSEMI

Package:

Module

Description:

Intelligent Power Module, 600V, 50A

Quantity:

In Stock :Available

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Mon, Apr 27 - Tue, Apr 28, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

FSAM50SM60A Information

ONSEMI FSAM50SM60A technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FSAM50SM60A.

Type
Parameter

Container Qty.
48

Input Logic
Active High

IO @ 25 °C Min (A)
50

Shutdown Pin
Yes

MSL Type
NA

RDS(on) (Ω)
-

Package Type
DIP-032

MSL Temp (°C)
0

Container Type
TUBE

Family
SPM2

Type
Parameter

Type
3-Phase Inverter IGBT

Substrate
DBC

VCE(sat) @ 25 °C Typ (V)
2.4

Case Outline
MODEB

Rated Voltage Min (V)
600

Emitter Configuration
3 Emitter Pins

Mounting Type
DIP

Download datasheets and manufacturer documentation for ONSEMI FSAM50SM60A.

Package Drawing:

d0a7acc1d51ca363d0be1abdd0177b5e.pdf

Datasheet:

215c8c511900f8549c25d5a2ae6655ab.pdf

FSAM50SM60A is a Motion SPM® 2 series that onsemi has developed to provide a very compact and low cost, yet high performance inverter solution for AC motor drives in low-power applications such as air conditioners. It combines optimized circuit protections and drive matched to low-loss IGBTs. Effective over-current protection is realized through advanced current sensing IGBTs. The system reliability is further enhanced by the built-in thermistor and integrated under-voltage lock-out protection. In addition the incorporated HVIC facilitates the use of single-supply voltage without any negative bias. Inverter leg current sensing can be implemented because of three separate nagative DC terminals.

Application

Motion Control - Home Appliance/Industrial Motor

Feature

UL Certified No. E209204
600V-50A 3-phase IGBT inverter bridge including control ICs for gate driving and protection
Three separate negative dc-link terminals for inverter current sensing applications
Single-grounded power supply thanks to built-in HVIC
Typical switching frequency of 5kHz
Built-in thermistor for temperature monitoring
Inverter power rating of 4.0kW / 100~253 VAC
Isolation rating of 2500Vrms/min.
Very low thermal resistance by using DBC(Al₂O₃) substrate
Adjustable current protection level by changing the value of series resistor connected to the emitters of sense-IGBTs
