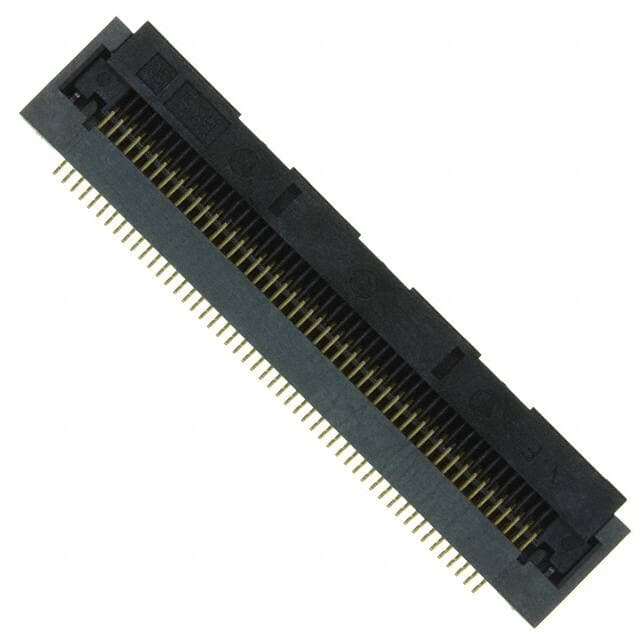

HIROSE FH28-50S-0.5SH(05)
HIROSE FH28-50S-0.5SH(05)

HIROSE FH28-50S-0.5SH(05)

Manufacturer No:

FH28-50S-0.5SH(05)

Manufacturer:

HIROSE

Package:

Description:

FH28 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 50 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FH28-50S-0.5SH(05) information

HIROSE FH28-50S-0.5SH(05) technical specifications, attributes, parameters and parts with similar specifications to HIROSE FH28-50S-0.5SH(05).

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FH28
  • JESD-609 Code
  • e4
  • Feature
  • Solder Retention, Zero Insertion Force (ZIF)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • FFC/FPC CONNECTOR
  • Number of Positions
  • 50
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 50
  • Orientation
  • Right Angle
  • Current Rating
  • 500mA
  • Contact Finish
  • Gold
  • Lead Pitch
  • 500?m
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Gray
  • Mating Cycles
  • 20
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tabbed
  • Locking Feature
  • Rotary Lock
  • Actuator Color
  • Black
  • Height
  • 5.6mm
  • Height Above Board
  • 0.100 2.54mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for HIROSE FH28-50S-0.5SH(05).

Datasheets:

FH28-50S-0.5SH(05) Overview


A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the FH28 Series.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -40°C~105°C.

FH28-50S-0.5SH(05) Features


FH28 series


FH28-50S-0.5SH(05) Applications


There are a lot of Hirose Electric Co Ltd
FH28-50S-0.5SH(05) FFC, FPC (Flat Flexible) Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
