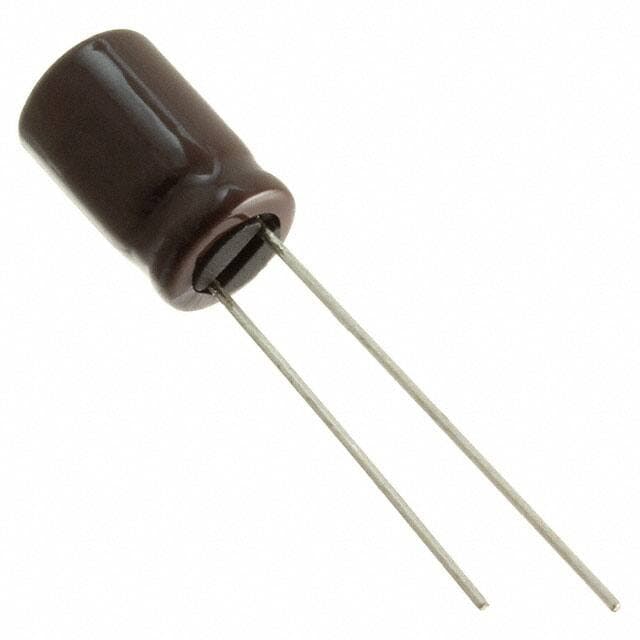

United Chemi-Con EKY-6R3ELL681MHB5D

Manufacturer No:

EKY-6R3ELL681MHB5D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 680?F Capacitor ±20% Bulk Through Hole 640mA 0.315Dia 8.00mm -40°C~105°C Polar 3.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-6R3ELL681MHB5D information

United Chemi-Con EKY-6R3ELL681MHB5D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-6R3ELL681MHB5D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
5

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2011

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
680?F

Voltage - Rated DC
6.3V

Lead Pitch
3.5mm

ESR (Equivalent Series Resistance)
130mOhm

Lead Spacing
0.138 3.50mm

Lead Diameter
600 ?m

Voltage
6.3V

Lifetime @ Temp
6000 Hrs @ 105°C

Ripple Current
640mA

Polarization
Polar

Life (Hours)
6000 hours

Impedance
130mOhm

Ripple Current @ Low Frequency
384mA @ 120Hz

Ripple Current @ High Frequency
640mA @ 100kHz

Diameter
8mm

Height Seated (Max)
0.512 13.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-6R3ELL681MHB5D.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

unitedchemicon-eky6r3ell681mhb5d-datasheets-1790.pdf

unitedchemicon-eky6r3ell681mhb5d-datasheets-1791.pdf

EKY-6R3ELL681MHB5D Overview

With a full charge, the ripple current is 640mA @ 100kHz.Defining 130mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 384mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.512 13.00mm.Voltage - Rated DC of 6.3V controls this capacitor.High efficiency requires the operating temperature to be -40°C~105°C.

EKY-6R3ELL681MHB5D Features

the ripple current is 640mA @ 100kHz.
the ripple current is 384mA @ 120Hz.
voltage - Rated DC of 6.3V
an operating temperature of -40°C~105°C

EKY-6R3ELL681MHB5D Applications

There are a lot of United Chemi-Con
EKY-6R3ELL681MHB5D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
