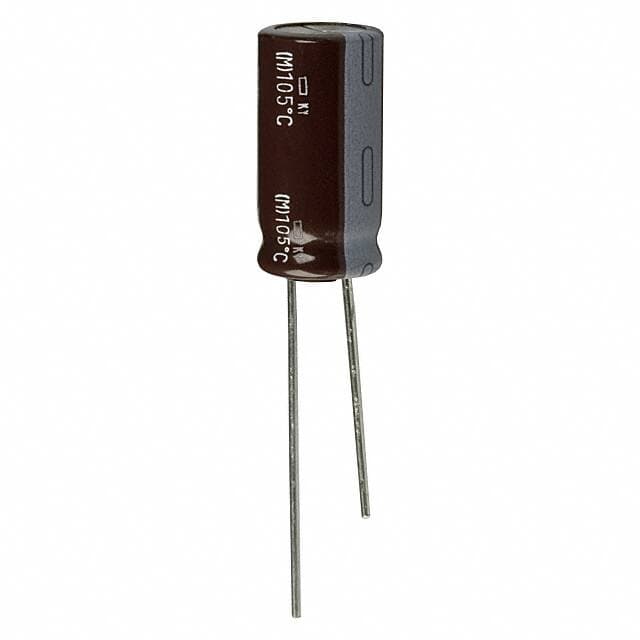

United Chemi-Con EKY-250ETD681MJ20S
United Chemi-Con EKY-250ETD681MJ20S

United Chemi-Con EKY-250ETD681MJ20S

Manufacturer No:

EKY-250ETD681MJ20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 680?F Capacitor ±20% Tape & Box (TB) Through Hole 1.4A 0.394Dia 10.00mm -40°C~105°C Polar 5.0038mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-250ETD681MJ20S information

United Chemi-Con EKY-250ETD681MJ20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-250ETD681MJ20S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Box (TB)
  • Series
  • KY
  • Published
  • 2011
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Applications
  • General Purpose
  • Capacitance
  • 680?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 5.0038mm
  • Lead Spacing
  • 0.197 5.00mm
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Ripple Current
  • 1.4A
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Impedance
  • 46mOhm
  • Ripple Current @ Low Frequency
  • 840mA @ 120Hz
  • Height Seated (Max)
  • 0.846 21.50mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKY-250ETD681MJ20S.

Datasheets:

EKY-250ETD681MJ20S Overview


A full charge has a ripple current of 1.4A @ 100kHz volts.In the lowest charge, the ripple current is 840mA @ 120Hz.Sitting height should not exceed 0.846 21.50mm (Max).A voltage of 25V DC operates this capacitor.Maintaining -40°C~105°C as the operating temperature will maximize efficiency.

EKY-250ETD681MJ20S Features


the ripple current is 1.4A @ 100kHz.
the ripple current is 840mA @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C


EKY-250ETD681MJ20S Applications


There are a lot of United Chemi-Con
EKY-250ETD681MJ20S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
