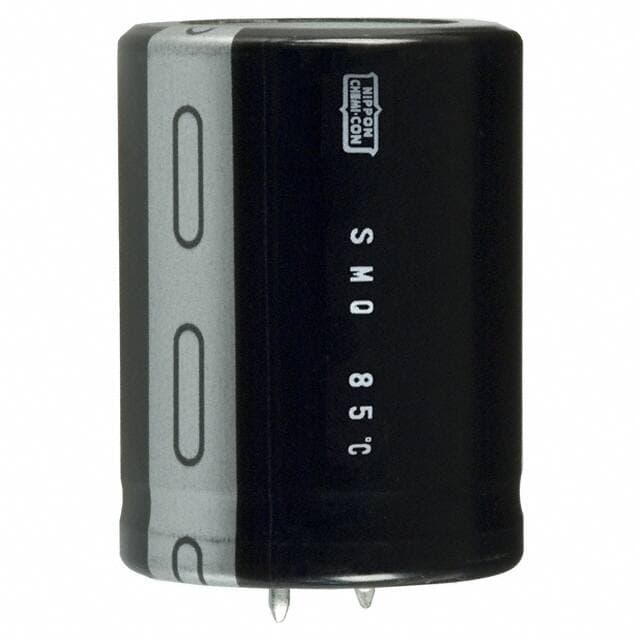

United Chemi-Con ESMQ401VSN471MR40S

Manufacturer No:

ESMQ401VSN471MR40S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - Snap-In

Description:

SMQ 470?F Capacitor ±20% Bulk Through Hole 2.39A 1.181Dia 30.00mm -25°C~85°C Polar 10mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMQ401VSN471MR40S information

United Chemi-Con ESMQ401VSN471MR40S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMQ401VSN471MR40S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Dielectric Material
Aluminium

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
SMQ

Published
2005

Size / Dimension
1.181Dia 30.00mm

Tolerance
±20%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Snap in

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
General Purpose

Capacitance
470?F

Voltage - Rated DC
400V

Lead Pitch
10mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.394 10.00mm

Leakage Current
1.30077mA

Ripple Current
2.39A

Polarization
Polar

Life (Hours)
2000 hours

Tan Delta
0.15

Ripple Current @ Low Frequency
2.39A @ 120Hz

Ripple Current @ High Frequency
3.418A @ 50kHz

ESR
529 m?

Diameter
30mm

Height
40mm

Height Seated (Max)
1.575 40.00mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMQ401VSN471MR40S.

Datasheets:

unitedchemicon-esmq451vsn101mp25s-datasheets-2061.pdf

ESMQ401VSN471MR40S Overview

In terms of ripple current, it is 3.418A @ 50kHz at full charge.When the charge is lowest, the ripple current is 2.39A @ 120Hz.Sitting height (Max) should not exceed 1.575 40.00mm.Voltage - Rated DC of 400V is required to operate this capacitor.It is recommended to maintain the operating temperature at -25°C~85°C in order to maximize efficiency.

ESMQ401VSN471MR40S Features

the ripple current is 3.418A @ 50kHz.
the ripple current is 2.39A @ 120Hz.
voltage - Rated DC of 400V
an operating temperature of -25°C~85°C

ESMQ401VSN471MR40S Applications

There are a lot of United Chemi-Con
ESMQ401VSN471MR40S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
