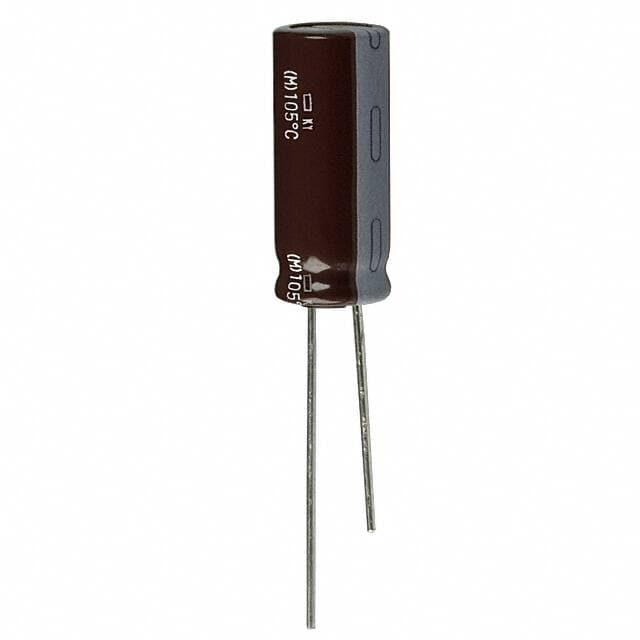

United Chemi-Con EKY-250ETD470ME11D

Manufacturer No:

EKY-250ETD470ME11D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 47?F Capacitor ±20% Tape & Box (TB) Through Hole 210mA 0.197Dia 5.00mm -40°C~105°C Polar 2.0066mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-250ETD470ME11D information

United Chemi-Con EKY-250ETD470ME11D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-250ETD470ME11D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Tape & Box (TB)

Series
KY

Published
2012

Size / Dimension
0.197Dia 5.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
47?F

Voltage - Rated DC
25V

Lead Pitch
2.0066mm

Lead Spacing
0.079 2.00mm

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
210mA

Polarization
Polar

Life (Hours)
5000 hours

Impedance
580mOhm

Ripple Current @ High Frequency
210mA @ 100kHz

Dissipation Factor
0.14 %

Height Seated (Max)
0.492 12.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-250ETD470ME11D.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

unitedchemicon-eky250etd470me11d-datasheets-3507.pdf

EKY-250ETD470ME11D Overview

Ripple current at full charge is 210mA @ 100kHz.It is 84mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.492 12.50mm.Consequently, it operates with a dissipation factor of 0.14 % (0.14 %).Voltage - Rated DC - is 25V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

EKY-250ETD470ME11D Features

the ripple current is 210mA @ 100kHz.
the ripple current is 84mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C

EKY-250ETD470ME11D Applications

There are a lot of United Chemi-Con
EKY-250ETD470ME11D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
