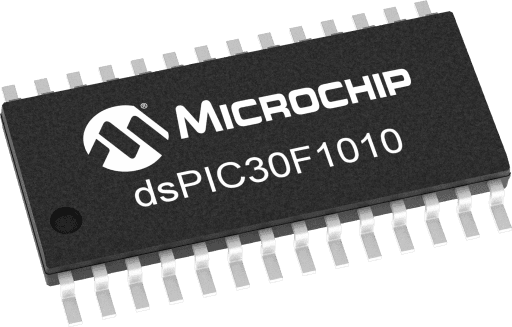

Microchip DSPIC30F1010-20E/MM
Microchip DSPIC30F1010-20E/MMMicrochip DSPIC30F1010-20E/MMMicrochip DSPIC30F1010-20E/MM

Microchip DSPIC30F1010-20E/MM

Manufacturer No:

DSPIC30F1010-20E/MM

Manufacturer:

Microchip

Package:

28-VQFN Exposed Pad

Description:

30 MIPS, 6KB Flash, 256B RAM, 28 pins, Motor Control

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC30F1010-20E/MM information

Microchip DSPIC30F1010-20E/MM technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC30F1010-20E/MM.

  • Type
  • Parameter
  • CPU Type
  • dsPIC® DSC
  • CPU Speed Max MHz (megahertz)
  • 30
  • Program Memory Size (KB)
  • 6
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 125
  • Operation Voltage Min.(V)
  • 3
  • Operation Voltage Max.(V)
  • 5.5
  • Pin Count
  • 28
  • Low Power
  • No
  • Number of Comparators
  • 2
  • ADC Modules
  • 1
  • ADC Channels
  • 6
  • ADC Resolution Max
  • 10
  • ADC Sampling Rate (ksps)
  • 2000
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 10
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 4
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 3
  • Output Compare Channels
  • 0
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • No

Download datasheets and manufacturer documentation for Microchip DSPIC30F1010-20E/MM.

Supporting Collateral:

Brochures:

Errata:

Legacy Collaterals:

User Guide:

Application Notes:

Reference Manual:

Data Sheets:

Programming Specifications:

dsPIC30F SMPS & Digital Power Conversion 16-bit Digital Signal Controller. These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: • AC to DC Converters • DC to DC Converters • Power Factor Correction (PFC) • Uninterruptible power supply (UPS) • Inverters • Embedded Power-Supply Controllers • Circuit Breakers, Arc Fault Detection • Digital Lighting

    High-Performance dsPIC30F core
  • Up to 30 MIPS operation
  • Modified Harvard architecture
  • C compiler optimized instruction set architecture
  • 24-bit wide instructions, 16-bit wide data path
  • DSP Engine for math intensive operations
  • Modulo and Bit-Reversed modes
  • Two 40-bit wide accumulators with optional saturation logic
  • 17-bit x 17-bit single-cycle hardware fractional/ integer multiplier
  • Single-cycle Multiply-Accumulate (MAC) operation
  • 40-stage Barrel Shifter
  • Dual data fetch
    Operating Conditions
  • 3.3V and 5.0V operation (±10%)
  • Industrial and Extended temperature ranges
    Peripheral Features
  • High-current sink/source I/O pins: 25 mA/25 mA
  • Three 16-bit timers/counters; optionally pair up 16-bit timers into 32-bit timer modules
  • Four 16-bit Capture input functions
  • Two 16-bit Compare/PWM output functions (Dual Compare mode available)
  • 3-wire SPI™ modules (supports 4 Frame modes)
  • I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing UART Module
    Power Supply PWM Module Features
  • Four PWM generators with 8 outputs
  • Each PWM generator has independent time base and duty cycle
  • Duty cycle resolution of 1.1 ns at 30 MIPS
  • Individual dead time for each PWM generator
  • Phase-shift resolution of 4.2 ns @ 30 MIPS
  • Frequency resolution of 8.4 ns @ 30 MIPS
  • Independent Current-Limit and Fault Inputs
  • Output Override Control
  • Special Event Trigger
  • PWM generated ADC Trigger
    Analog Features
  • 10- bit ADC with 2000 Ksps conversion rate
  • Up to 12 input channels
  • “Conversion pairing” allows simultaneous conversion of two inputs (i.e., current and voltage) with a single trigger
  • PWM control loop with up to six conversion pairs where each conversion pair has up to four PWM and seven other selectable trigger sources
  • Interrupt hardware supports up to 1M interrupts per second
    Comparator
  • Four Analog Comparators with 20 ns response time and 10-bit DAC reference generator
  • PWM module interface with Duty Cycle Control, Period Control and Fault Detect
  • Special Event Trigger
  • PWM-generated ADC Trigger
    Special Microcontroller Features
  • Enhanced Flash program memory with 10,000 erase/write cycle (min.) for industrial temperature range, 100k (typical)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation
  • Fail-Safe clock monitor operation
  • Detects clock failure and switches to on-chip low power RC oscillator
  • Programmable code protection
  • In-Circuit Serial Programming™ (ICSP™)
  • Selectable Power Management modes: Sleep, Idle and Alternate Clock modes
